Un-Headed Crown-Nut Installation

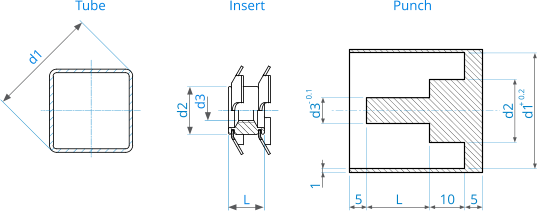

1) Fabricate a punch appropriate for the type of Crown-Nut and the depth of installation required.
2) Ensure that the receiving tube is firmly secured.
3)
Place
the
Crown-Nut
inside
the
punch,
making
sure
that
the
crowns
are
orientated
correctly,
(bent towards the punch, as shown).
4)
Place
the
Crown-Nut
and
punch
assembly
on
the
head
of
the
tube,
ensuring
that
the
crowns
are
orientated
correctly
(square
to
the
tube
walls).
It
is
important
that
the
end
of
the
tube
is
a
uniform
shape
and
cut
perpendicular
to
the
side
of
the
tube,
as
any
cutting
errors
will
be
detrimental
to
the
fit and function of the
Crown-Nut
.
5) Gradually apply pressure until the end of the run and the punch bottoms out.
6) Remove the punch.
Material & Finish
Electro Zinc Plated Steel
Part Number Examples
ITT2S M6 19.5
2 crowns round type CROWN-NUT with an M6 thread,
suitable for round tube section with an internal dimension
ranging from 19.5mm to 20.9mm
ITT2S M10 26.0
2 crowns round type CROWN-NUT with an M10 thread,
suitable for round tube section with an internal dimension
ranging from 26.0mm to 28.0mm

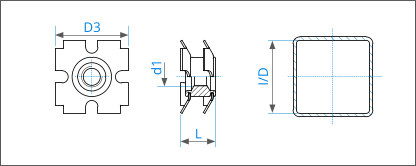

Dimensional
Part Number
d3
(Crown A/F)
I/D
(Int. Box Section Size)
L
(Total Length)
Non-binding dimensions in mm.
It is advisable to carry out preliminary assembly tests to determine the size that gives optimal performance in your application.
Application & Installation
Ideal for applications subject to pull forces. Not
suitable for push loads. Not having a head allows
fitting of the Crown-nut insert inside the tube
section at your own defined depth.
Press fit: gradually increase pressure on the insert
until the required depth is reached. It is highly
recommended that a sleeved punch is used to
ensure the insert is installed squarely and at the
correct depth (see below).
d1
(Thread)
M6
18.3
21.6
24.3
29.2
18.0
21.4
24.3
29.1
37.4
15.7 - 17.1
18.9 - 20.2
22.1 - 23.4
26.0 - 28.0
15.7 - 17.1
18.9 - 20.2
22.1 - 23.4
26.0 - 28.0
34.8 - 36.1
11
10
14.2
12
15
14
13.8
16.2
17.3
ITQ2S M6 15.7
ITQ2S M6 18.9
ITQ2S M6 22.1
ITQ2S M6 26.0
ITQ2S M8 15.7
ITQ2S M8 18.9
ITQ2S M8 22.1
ITQ2S M8 26.0
ITQ2S M8 34.8
M8
Info
An Insert for use inside the end of square section
The Crown-nut is a revolutionary solution for the creation of a strong reusable female thread at the end of round or
square section tubes. Crown-nut solves the issue of how to securely fix to the end of square section, guaranteeing
superior torque-out and pull-out performance. The product range offers solutions for round tube and square
section and is available in a wide range of sizes. A version is also available that is designed to accept push-fit castors.
Advantages of the Crown-nut
•
Can be installed into square section with a wide internal size tolerance range. Thanks to the flexibility of the
crown design, the same item code can be used for a range internal sizes.
•
The crown is designed so that the shape of the tube section is not altered during installation, guaranteeing the
aesthetics of the external surface.
•
Crown-nuts are easy to install and are cost effective. The press-in fit is fast and easy, enabling the elimination
of traditional and costly assembly processes such as welding and staking.
Note
After the insertion of the Crown Nut avoid heat treatments, galvanization and other heating operations that could
compromise the characteristics of the product.
Type ITQ2S
CROWN-NUT
SQUARE
