Dimensional
Material & Finish
Type NMC (Non-Locking) - 300 Series Stainless Steel (A2) Type NMLC (Locking)- 300 Series Stainless Steel (A2) + Molybdenum Disulphide Dry Film Lubricant Parts are suitable for installation in ductile panels with a maximum recommended hardness of 70 HRB.
Part Number Examples
Part number is made up as follows: (Type)-(Thread)-(Material code)-(Material/Finish code) For example: NMC-M3-1-A2 (Non-Locking Miniature Nut-M3-0.99-1.14 sheet thickness-stainless steel) NMLC M4-2-A2 (Locking Miniature Nut-M4-1.50-1.78 sheet thickness-stainless steel)
RoHS REACH COMPLIANT
Info
Self-Clinching Miniature Nuts provide strong reusable female threads in panels that are too thin to be conventionally tapped where space is at a premium or installation very close to the edge is required.   Utilising a special proven clinch feature in combination with a radially knurled collar, this fastener has excellent torque-out and push-out characteristics whilst providing a flush finish on the underside of the panel. Available in non-locking and locking versions, the locking version features an elliptically deformed body plus a dry film lubricant to provide prevailing torque locking capability to limit loosening under vibration.   Like all self clinching fasteners they are installed using a parallel squeezing action, so require access to both sides of the panel.   Miniature Clinch Nuts are available in various thread sizes, are manufactured from 300 series stainless steel and are suitable for installation in ductile steel and aluminium panels with a recommended maximum hardness of 70 HRB.

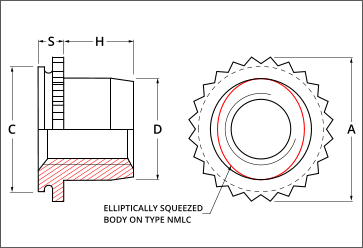

Thread Size
Material code
S Max.
Max hole in attached parts
C +0.0 -0.13
D Max.
Rec. sheet thickness
Min CL to edge of panel
1
0.99 - 1.14
1.02
2
1.50 - 1.78
1.53
4.37
3.96
3.5
3.6
M3 x 0.5
1
0.99 - 1.14
1.02
2
1.50 - 1.78
1.53
7.37
5.23
4.5
M4 x 0.7
1
0.99 - 1.14
1.02
2
1.50 - 1.78
1.53
1
1.50 - 1.78
1.53
7.37
6.48
5.5
M5 x 0.8
8.72
7.72
6.5
7.1
M6 x 1.0
H +0.40 -0.00
1.90
2.55
3.05
3.30
Hole size +0.08 -0.0
4.39
7.39
7.39
8.74
A ±0.13
4.88
8.17
8.17
9.74
3.60
2.50
2.5
2.8
1.65
3.61
4.07
1
0.76 - 0.91
0.76
M2 x 0.4
5.2
5.2
Self Clinching Miniature Locking and Non-Locking Clinch Nuts
Type NMC|NMLC
SELF-CLINCHING MINIATURE NUTS
