Installation Equipment for Blind Rivet Nuts

Tooling, Spares, Servicing & Repair

We carry spares for our best selling tools such as mandrels and nose cones as well as other service replaceable items. Offering support for all the tools we sell, we can service and repair all our manual and air tooling, as well as other major branded tools such as Avdel, Gesipa, Emhart, FAR etc. Send us your tool for a quick turnaround, no obligation, repair or service quotation.

N-200

The ELEMENT® range of hand tools was developed with Ergonomics, Ease of use and Reliability in mind. Suitable for intensive and continuous use, all tools come complete with the necessary equipment to change sizes quickly and easily. The N-200 is a compact double handled lever-action tool that can set rivet nuts from M3 to M8 in aluminium, steel and stainless steel. This tool features a cantilevered action to increase pull-up force while reducing the effort required by up to 3 times. The main body is aluminium and the handles are steel with ergonomic ABS grips that are comfortable in use. Comes with 5 mandrels and nose cones (M3, M4, M5, M6 & M8). Size: (L) 320mm Weight: 1.34Kg

E-410NV

E-410NV-T

KJ60

KJ45S

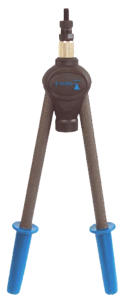

The ELEMENT® range of hand tools was developed with Ergonomics, Ease of use and Reliability in mind. Suitable for intensive and continuous use, all tools come complete with the necessary equipment to change sizes quickly and easily. The E-410NV is a high quality double handled lever-action tool that can set rivet nuts from M4 to M10 in aluminium, steel and stainless steel. Manufactured from aluminium and ABS plastic. Comes with 5 mandrels and nose cones (M4, M5, M6, M8 & M10). Size: (L) 475mm Weight: 2.0Kg

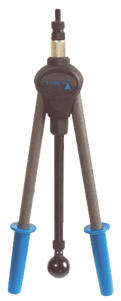

The ELEMENT® range of hand tools was developed with Ergonomics, Ease of use and Reliability in mind. Suitable for intensive and continuous use, all tools come complete with the necessary equipment to change sizes quickly and easily. The E-410NV-T is a high quality double handled lever-action tool that can set rivet nuts from M4 to M10 in aluminium, steel and stainless steel. With the addition of a feed spindle to allow quick loading and removal of the rivet nut, reducing assembly time. Manufactured from aluminium and ABS plastic. Comes with 5 mandrels and nose cones (M4, M5, M6, M8 & M10). Size: (L) 475mm Weight: 2.2Kg

The KJ60 is a high quality, ultra reliable, hydropneumatic rivet nut setting tool suited to production environments. With quick mandrel change over and easy stroke adjustment, set up is fast and operation is simple. This tool can set rivet nuts from M3 to M8 in aluminium, steel & stainless steel and rivet bolts from M5 to M8. Featuring automatic rivet nut feed-on, forward/reverse trigger action for a fast setting cycle, spring balance attachment point, swivel airline fitting, unique hydraulic oil refill system and reduced body size and weight. The tool is supplied in a sturdy lightweight plastic carry case with 5 mandrels and nose cones (M3, M4, M5, M6 & M8), tie rod disengagement pin, 5mm Allen key, a bottle of hydraulic oil, an air line fitting and the manual. Made in Italy by FAR, this tool has 12 months warranty. Size: (L) 295mm (H) 288mm Weight: 2.2Kg Operating Pressure: 6 bar Minimum Air Hose Internal Diameter: 6mm We supply a full range of spares and accessories for this tool and can service and repair your tool for you with a quick turnaround.

The KJ45S is a heavy duty, high quality, ultra reliable, hydropneumatic rivet nut setting tool suited to high volume production environments. With quick mandrel change over and easy stroke adjustment, set up is fast and operation is simple. This tool can set rivet nuts from M4 to M12 in aluminium, steel & stainless steel and rivet bolts from M5 to M8. Featuring automatic rivet nut feed-on, forward/reverse trigger action for a fast setting cycle, spring balance attachment point, swivel airline fitting, unique hydraulic oil refill system and reduced body size and weight. The tool is supplied in a sturdy lightweight plastic carry case with 5 mandrels and nose cones (M3, M4, M5, M6 & M8), tie rod disengagement pin, 5mm Allen key, a bottle of hydraulic oil, an air line fitting and the manual. Made in Italy by FAR, this tool has 12 months warranty. Size: (L) 296mm (H) 312mm Weight: 2.9Kg Operating Pressure: 6-7 bar Minimum Air Hose Internal Diameter: 8mm We supply a full range of spares and accessories for this tool and can service and repair your tool for you with a quick turnaround.
