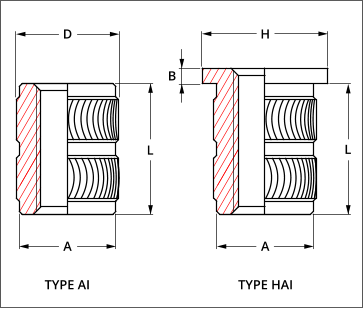

NON-HEADED INSERT
FULLY INSTALLED
HEADED INSERT
FULLY INSTALLED
Hole Depth = L
+ min. 2 thread
pitches
1°
inc.
Hole
size
Min. wall
thickness
HEAT-STAKE
HORN
HEAT-STAKE
HORN
HEAT-STAKE
HORN
Material & Finish
Brass (B)
Stainless Steel (A2)
Part Number Examples
Part number is made up as follows:
(Type)-(Thread)-(Material code)
For example:
AI-M4-B (Insert for amorphous thermoplastics-M4-brass)
HAI-M5-A2 (Insert for amorphous thermoplastics-M5-stainless steel)
Downloadable Data Sheet
Back
Installation
Dimensional
Thread
Size
M2 x 0.4
M2.5 x 0.45
M3 x 0.5
M3.5 x 0.6
M4 x 0.7
M5 x 0.8
M6 x 1.0
M8 x 1.25
Hole Size
+0.10
3.2
4.0
4.0
4.8
5.6
6.4
8.0
9.6
Min. wall
thickness
1.4
1.8
1.8
2.1
2.4
2.8
3.6
5.0
H
4.8
5.5
5.5
6.4
7.1
7.9
9.5
11.1
D
3.5
4.4
4.4
5.2
6.1
6.9
8.5
10.0
A
3.1
3.9
3.9
4.7
5.5
6.3
7.9
9.5
B
0.51
0.58
0.58
0.74
0.89
1.07
1.32
1.32
L
3.9
5.8
5.8
7.1
8.1
9.5
12.7
12.7
Info
Post moulded inserts can offer significant benefits over mould-in inserts such as a reduction of in place cost, no
secondary operation to clean flash residue from threads, fewer rejects due to dislodged inserts and ease of
installation.
Inserts for amorphous thermoplastics are available in a range of thread sizes, in headed and non-headed variants,
are manufactured from brass and stainless steel and are suitable for installation in notch sensitive thermoplastics by
heat-staking. Featuring rounded knurl bands to minimise stress, the non-headed variant is a symmetrical design,
avoiding the issue of part orientation during installation.

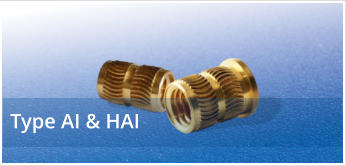

INSERTS FOR
AMORPHUS
THERMOPLASTICS
