Taper T
A
B
C
0.5x45°
30°
D
E
R0.2
Sharp corner
Polished surface
Ejector sleeve
Thread Size
M2
M2.5
M3
M3.5
M4
M5
M6
M8
M10
T Inclusive
4.5°
4.5°
4.5°
5.5°
C
3.00
3.50
4.00
4.70
5.40
6.00
8.00
10.00
12.00
A +0.000 -0.025
1.550
2.000
2.450
2.850
3.250
4.150
4.950
6.700
8.400
B +0.0125 -0.0125
2.300
2.800
3.125
3.750
4.425
5.125
6.600
8.500
10.500
D +0.04 -0.02
0.80
0.90
1.05
1.30
1.55
1.70
1.80
2.00
2.10
E +0.10 -0.10
2.65
3.00
3.40
4.55
5.00
5.55
6.15
9.00
9.70
MOULD PIN DETAIL
It is important that accurately produced mould pins are used with this insert to retain the insert prior to moulding, to facilitate accurate location and to prevent the ingress of material during the moulding process. The dimensions shown should be used for the head of the mould pin. Ejector sleeve detail shown for reference only.
Material & Finish
Brass (B) Stainless Steel (A2)
Part Number Examples
Part number is made up as follows: (Type)-(Thread)-(Material code) For example: FTI-M5-B (Blind Mould-In Insert for plastics-M5-brass) FTI-M8-A2 (Blind Mould-In Insert for plastics-M8-stainless steel)
RoHS REACH COMPLIANT
Installation

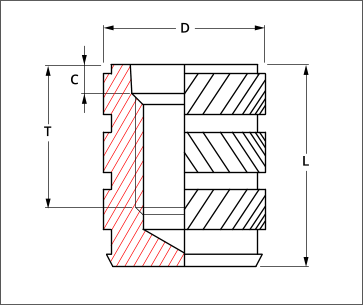

Dimensional
Thread Size
M2 x 0.4
M2.5 x 0.45
M3 x 0.5
M3.5 x 0.6
M4 x 0.7
M5 x 0.8
M6 x 1.0
M8 x 1.25
M10 x 1.5
L
5.5
6.4
7.3
9.2
10.2
11.2
14.4
16.5
17.9
D
3.4
4.3
4.7
5.5
6.3
7.3
9.8
11.4
13.8
C
1.0
1.2
1.3
1.6
1.8
2.0
2.0
2.3
2.4
T Min.
3.6
4.0
4.6
6.0
6.7
7.4
8.1
11.1
11.9
Info
This blind ended insert has been specifically designed for mould-in applications.   It utilises three opposed helical knurled bands and three deep recesses to achieve extremely high levels of pull-out and torque-out resistance. Ingress of plastic during moulding is prevented by the closed end and the use of a mould pin and mating counter bore in the open end.   A mould pin must be used with this insert to facilitate accurate location and to prevent the ingress of material during the moulding process.
Blind End Mould-In Inserts for Plastics
BLIND MOULD-IN INSERT FOR PLASTICS
