Northern Precision Ltd YouTube Channel HEAT OR ULTRASONIC HORN
INSERT FULLY INSTALLED
HEAT OR ULTRASONIC HORN HEAT OR ULTRASONIC HORN
Hole Depth = L + min. 2 thread pitches
0.5° inc.
Hole size
Min. wall thickness
Material & Finish
Brass (B) Stainless Steel (A2)
Part Number Examples
Part number is made up as follows: (Type)-(Thread)-(Material code) For example: TI-M4-B (Symmetrical Insert for thermoplastics-M4-brass) TI-M5-A2 (Symmetrical Insert for thermoplastics-M5-stainless steel)
RoHS REACH COMPLIANT
Installation
Info
Post moulded inserts can offer significant benefits over mould-in inserts such as a reduction of in place cost, no secondary operation to clean flash residue from threads, fewer rejects due to dislodged inserts and ease of installation. Symmetrical Inserts for thermoplastics are available in a range of thread sizes, are manufactured from brass and stainless steel and are suitable for installation in soft, medium and hard thermoplastics by heat-staking or ultrasonics. The symmetrical design removes the issue of part orientation during installation.

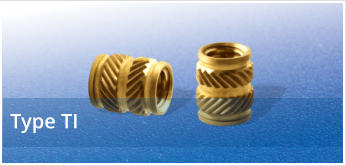

Post Moulded Symmetrical Inserts for Thermoplastics
SYMMETRICAL INSERT FOR THERMOPLASTICS
brass inserts for plastics
Dimensional
Thread Size
M2 x 0.4
M2.5 x 0.45
M3 x 0.5
M3.5 x 0.6
M4 x 0.7
M5 x 0.8
M6 x 1.0
M8 x 1.25
M10 x 1.5
Hole Size +0.10
3.2
4.0
4.0
4.8
5.6
6.4
8.0
9.6
11.9
Min. wall thickness
1.3
1.6
1.6
1.8
2.1
2.6
3.3
4.5
6.0

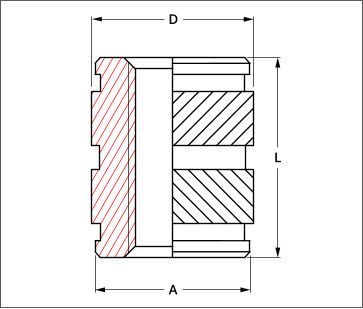

D
3.5
4.4
4.4
5.2
6.1
6.8
8.5
10.0
12.3
A
3.1
3.9
3.9
4.7
5.5
6.3
7.9
9.5
11.8
L
3.9
5.7
5.7
7.1
8.1
9.5
12.7
12.7
12.7
