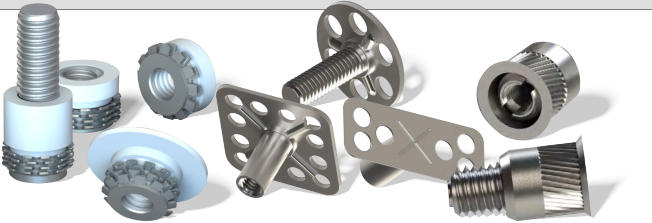

Inserts for stone, solid surface materials, composites and sandwich panels.

INSERTS FOR STONE, SOLID MATERIALS, COMPOSITES AND SANDWICH PANELS

Laminate Materials

Stone and Solid Materials

Sandwich Panels

Installation Process

Insert Type

Installation Tooling

Description

Press-In

Threaded M4-M6

N/A

Self-anchoring threaded insert for use in stone and other solid surface materials.

Adhesive / Mould-In

Threaded M4-M10

N/A

Base plate system with stud, collar or nut, for bonding to or moulding in to laminate and composite panels.

Deform + Adhesive

Threaded M6-M8

Rivet Nut Tool

Threaded tubular rivet nut with insert for structural fastening in sandwich panels utilising mechanical and chemical bonding.

Keep-Nut® is a press-in threaded insert that utilises a mechanical anchoring feature, to provide permanent threads in panels made of marble, granite or other stones, as well as composites, carbon, Corian®, HPL, glass and others solid surface materials. Keep-Nut is manufactured in stainless steel and consists of a threaded bush, a set of toothed spring washers (crowns), and a plastic ring holding the parts together. Keep-Nut inserts have several advantages compared to other fasteners for stone and solid materials. The preparation needed is just a cylindrical hole – an undercut hole is not required – which means that standard tools can be used.

KEEP-NUT ^®

MASTER-PLATE ^®

DEFORM-NUT ^®

Master-Plate® bonding fasteners are available in a combination of base plate styles, in stud, standoff and nut configurations. Master-Plate is a cost effective, secure and reliable method of integrating male or female threads into composite, fibreglass, laminate and carbon fibre applications. Master-Plate is suitable for surface bonding using adhesive or embedding during the forming process. Master-Plate is ideal for fibre composites, fibreglass, carbon fibre, moulding compounds, plastics, laminated timber, stone etc.

Deform-Nut ® creates a threaded fixing point in sandwich panel materials with a honeycomb or composite internal structure and avoids the use of expensive or complex solutions such as resin potting or bonding of bushes and tie rods. Deform-Nut allows you to use the same type of product in a wide range of sandwich panel materials and thicknesses, is easy and quick to install, doesn't require any further processes or finishing after installation. Deform-Nut can be used in any composite material panel, resins, carbon fibre, light alloy, and more.
