Pias Nuts Type KP
Pias Nuts Type HN
Pias Nuts Type PNC
Rivtex Nuts Type RXM
Rivtex Studs Type RXS
Strux Studs Type SX

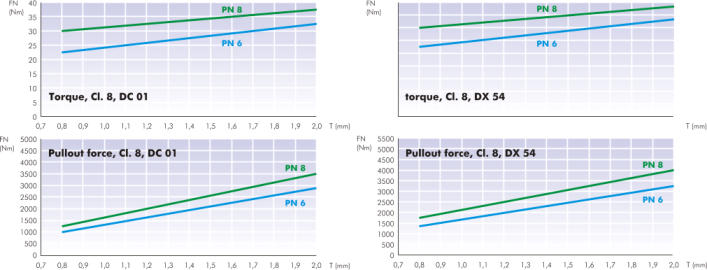

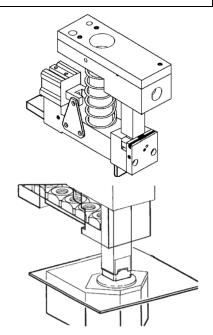

Installation Method & Performance
1
2
3
4
Material & Finish
Steel - Stength Class 8 (8)
Steel - Stength Class 9 (9)
Unplated Steel (X)
Electro Zinc/Clear Plated Steel (ZI)
Electro Zinc/Nickel Plated Steel (ZN)
Electro Zinc/Heavy Plated Steel (ZI96)
Thread tolerance on unplated parts 6G
Thread tolerance on plated parts 6H
Part Number Examples
Part number is made up as follows:
(Part code)-(Strength Class)-(Material/Finish code)
For example:
PNC-6S-8-ZI (PNC Nut-M6-suitable for 0.6 to 1.75mm panel
thickness-strength class 8-electro zinc/clear plated steel)
PNC-8T-9-ZI96 (PNC Nut-M8-suitable for 1.5 to 2.5mm panel
thickness-strength class 9-electro zinc/heavy plated steel)
Downloadable Data Sheet
Back
Dimensional
Thread size
Part
code
M5 x 0.8
PNC 4S
PNC 5H
Panel
range
0.6 - 1.65
1.2 - 2.25
B2
±0.19
7.06
9.36
K
±0.1
7.10
9.35
G
±0.08
3.30
4.75
PNC 5T
B1
±0.13
9.45
12.70
12.70
F
±0.1
1.73
2.77
1.98
0.6 - 1.75
9.36
9.35
4.75
PNC 6S
12.70
1.98
0.6 - 1.75
9.36
9.35
4.75
M6 x 1.0
PNC 6T
PNC 8S
1.2 - 2.25
0.7 - 1.8
9.36
12.41
9.35
12.40
4.75
5.38
PNC 6H
12.70
17.45
12.70
2.77
2.21
3.20
1.5 - 3.0
9.36
9.35
5.20
PNC 8T
17.45
3.17
1.5 - 2.5
13.96
12.40
6.38
M8 x 1.25
PNC 8H
PNC 10H
1.45 - 3.0
1.45 - 3.0
13.96
13.96
13.97
13.97
7.14
7.14
PNC 8X
19.00
19.00
17.45
3.17
3.17
3.96
1.75 - 3.5
12.41
12.40
7.14
M4 x 0.7
M10 x 1.5
Info
PIAS®-PNC self-piercing nuts are designed to provide cost effective mid-strength threads ranging from M4 to M10 in
thin metal panels. They are available in material property classes 8 and 9 and can be specified for panels ranging
from 0.6mm to 3.5mm. Depending on the panel thickness, a pre-formed depression in the panel is required if a
flush surface is needed. The Pias® installation tooling system is required to install Pias® nuts.
Available in metric thread sizes in strength class 8 and 9 steel, they can be supplied as unplated or with a range of
electro plated zinc finishes including zinc/clear, zinc/nickel and zinc/thick film passivated.
Benefits of Pias® PNC Nuts include:
•
Self piercing so no need to pre-punch the hole, meaning one less process is required and there is no potential
for misalignment between hole and nut
•
Reliable, flexible installation process
•
Excellent cost to performance ratio
•
Various feeding options available
•
Can be specified with a self-locking thread
Pias® is a trademark of QP Fastening Works Co., LTD Japan.

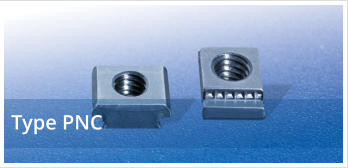

PIAS® SELF PIERCING
PNC NUTS
