Crown-nuts
Crown-nut Round
Crown-nut Round Headed
Crown-nut Round Headed -
for Push Fit Castors
Crown-nut Square
Crown-nut Square Headed
Crown-nut Square Headed -
for Push Fit Castors
Material & Finish
Electro Zinc Plated Steel
Part Number Examples
ITT2Q D11.3 18.9
2 crowns square headed type CROWN-NUT with an
11.3mm diameter hole for push-fit castors, suitable for
square tube section with an internal diameter ranging
from 18.9mm to 20.2mm
ITT2Q D11.3 34.8
2 crowns square headed type CROWN-NUT with an
11.3mm diameter hole for push-fit castors, suitable for
square tube section with an internal diameter ranging
from 34.8mm to 36.1mm

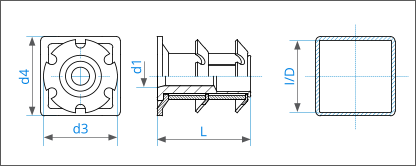

Dimensional
I/D
(Int. Box Section Size)
L
(Total Length)
d1
Part Number
d4
(Head A/F)
ITT2Q D11.3 18.9
ITT2Q D11.3 22.1
ITT2Q D11.3 25.3
ITT2Q D11.3 26.4
ITT2Q D11.3 28.4
11.3
ITT2Q D11.3 34.8
38.1
ITT2Q D11.3 41.4
ITT2Q D11.3 47.5
d3
(Crown Diameter)
21.0
24.6
276
28.8
30.6
37.0
43.5
50.0
18.9 - 20.2
22.1 - 23.4
25.3 - 26.6
26.4 - 27.8
28.4 - 29.8
34.8 - 36.1
41.4 - 42.4
47.5 - 48.8
22
25
28
30
32
38
45
50
Non-binding dimensions in mm.
It is advisable to carry out preliminary assembly tests to determine the size that gives optimal performance in your application.
Application & Installation
Ideal for applications subject to push and pull
forces. The head only allows fitting as far as the
end face, so the Crown-nut insert can be used to
securely attach feet or wheels.
Press fit: gradually increase pressure on the insert
until the head seats against the end face of the
tube.
Info
A Headed Insert for use inside the end of square tube section
The Crown-nut is a revolutionary solution for the creation of a strong reusable socket at the end of round or square
section tubes. Crown-nut solves the issue of how to securely fix push-fit castors to the end of tube section,
guaranteeing superior fit and performance. The product range offers solutions for round tube and square section
and is available in a wide range of sizes. Threaded versions are also available where a strong female thread is
required.
Advantages of the Crown-nut
•
Can be installed into tube section with a wide internal diameter tolerance range. Thanks to the flexibility of
the crown design, the same item code can be used for a range internal diameters.
•
The crown is designed so that the shape of the tube is not altered during installation, guaranteeing the
aesthetics of the external surface.
•
Crown-nuts are easy to install and are cost effective. The press-in fit is fast and easy, enabling the elimination
of traditional and costly assembly processes such as welding and staking.
Note
After the insertion of the Crown Nut avoid heat treatments, galvanization and other heating operations that could
compromise the characteristics of the product.
Type ITT2Q
CROWN-NUT
SQUARE HEADED FOR PUSH FIT CASTORS
