RIVET BUSHES

Round Rivet Bush Serrated Shoulder Round Rivet Bush Knurled Spigot Hexagon Rivet Bush Round Rivet Bush for Clinch Nut Hole Size Mini Rivet Bush Serrated Shoulder Mini Rivet Bush Knurled Spigot Round Rivet Bush Standoff Serrated Shoulder Round Rivet Bush Standoff Knurled Spigot Mini Rivet Bush Standoff Serrated Shoulder Mini Rivet Bush Standoff Knurled Spigot Tank Closed End Rivet Bush Panel Thickness Gauge Chart

Installation Method

Punch or drill specified hole size. Ensure that you are using the correct gauge fastener for the panel thickness used. Place part in anvil and locate panel hole over spigot.

Using a profiled punch, ensuring panel is held perpendicular to the punch and anvil face, apply a parallel squeezing force to form the correct spigot profile.

Alternatively, a domed anvil or a ball bearing and hammer can be used to form the spigot profile, however this will not give optimum performance.

For optimum performance, installing with a profiled punch is highly recommended. A flat punch can also be used but will result in reduced push-out performance.

Performance

All performance figures are averages obtained over a range of installations for steel parts in mild steel panels and should be used for guidance only. Fastener material, panel material, hole preparation, installation tooling and method can affect part performance. Actual in-use torque to turn resistance increases with clamping load. We always recommend that you carry out your own tests in the actual application. Please call our sales team and we will be happy to provide you with samples as well as offering technical assistance.

Thread size

Torque to Turn (Nm)

Push-Out (N)

20swg

18swg

16swg

14swg

12swg

10swg

20swg

18swg

16swg

14swg

12swg

10swg

M2.5

M3.5

1.5

2.4

4.6

6.8

7.2

1.8

2.9

4.9

7.2

10.9

2.1

3.5

5.7

8.9

13.3

2.2

4.0

6.1

9.7

15.2

2.4

4.4

6.5

12.5

16.6

2.6

5.0

7.2

13.8

17.9

975

1100

1350

1450

1550

1125

1350

1600

1800

2000

1350

1550

1900

2300

2600

1575

1750

2300

2600

2900

1650

1900

2500

2800

3400

1775

2100

3100

3500

4200

Material & Finish

Unplated Steel (GX) Electro Zinc Plated Steel (GZ) 303 Stainless Steel (GS) 316 Stainless Steel (A4) Aluminium (GA) Brass (GB)

Part Number Examples

Part number is made up as follows: (Type)-(Thread code)-(Panel thickness)-(Material/Finish code) For example: TBH-M6-10-GZ (Tank Rivet Bush-M6-10swg sheet thickness-electro zinc plated steel) TBH-M4-12-GS (Tank Rivet Bush-M4-12swg sheet thickness-stainless steel)

Panel Thickness Gauge Chart Downloadable Data Sheet Back

Dimensional

Panel thickness ranges shown are preferred range. Other sizes are subject to availability or special order.

Thread Size

M2.5 x 0.45

M3 x 0.5

M3.5 x 0.6

M4 x 0.7

M5 x 0.8

M6 x 1.0

M8 x 1.25

M10 x 1.5

M12 x 1.75

To suit panel thickness

20 - 10swg (1.0 - 3.0mm)

Hole Size +0.05 -0.0

5.54

6.73

7.92

9.52

12.70

15.87

19.05

D ±0.15

7.92

9.52

11.10

12.70

15.87

19.05

25.40

H ±0.13

8.61

8.97

9.32

10.57

11.89

16.50

19.05

C +0.0 -0.13

5.54

6.73

7.92

9.52

12.70

15.87

19.05

Info

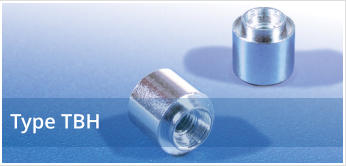

Tank Bush Closed End Rivet Bushes provide strong reusable captivated sealed threads for thin panels. They can be installed into panels as thin as 0.5mm and do not suffer from the maximum hardness or centreline to edge limitations of self-clinching nuts so are suitable for installation into panels of any hardness such as hard stainless steels or in close to edge applications. Featuring an undercut shoulder to provide a sharp skirt to help seal the fastener at the panel face, this style of rivet bush offers good torque to turn resistance while maximising spigot strength to resist push-out. Manufactured to suit a specific panel thickness, we can manufacture parts with custom dimensions to suit your particular application. Available from stock in metric thread sizes in steel, electro zinc plated steel and stainless steel. We can also supply Unified, BA, BSW and BSP thread sizes subject to minimum order quantities. 316 stainless steel, aluminium and brass tank rivet bushes are available to order subject to minimum order quantities. Ideally tank rivet bushes should be installed using a press with a suitability profiled punch by applying a parallel squeezing force, however they can be installed using a hammer and ball bearing to form the spigot profile.

TANK CLOSED END RIVET BUSH
