Material & Finish

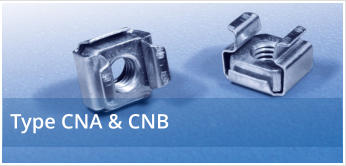

Steel Nut - Spring Steel Cage
Electro Plated Zinc (ZC)
Part Number Examples
Part number is made up as follows:
(Type)-(Thread)-(Panel Range Code)-(Material/Finish code)
For example:
CNA-M5-0-ZC (Cage Nut for 8.3 hole-M5-0.5 to 1.1mm panel range-electro-
zinc plated steel)
CNB-M6-3-ZC (Cage Nut for 9.5 hole-M6-2.8 to 3.5mm panel range-electro-
zinc plated steel)
Downloadable Data Sheet
Back

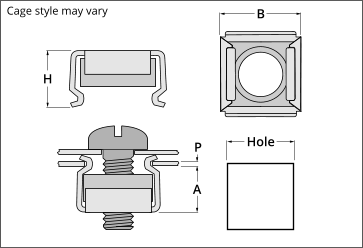

Dimensional
Type
H
Panel range
P
A
B
Thread Size
Panel range
code
Hole
Size
CNA
M4 x 0.7
8.0
0.5- 1.1
0
6.0
12.0
8.3
8.5
1.2 - 1.6
1
9.5
1.7 - 2.5
2
10.5
2.6 - 3.5
3
11.5
3.6 - 4.5
4
CNA
M5 x 0.8
8.0
0.5 - 1.1
0
6.0
12.0
8.3
8.5
1.2 - 1.6
1
9.5
1.7 - 2.5
2
10.5
2.6 - 3.5
3
11.5
3.6 - 4.5
4
CNA
M6 x 1.0
8.0
0.5 - 1.1
0
6.0
12.0
8.3
8.5
1.2 - 1.6
1
9.5
1.7 - 2.5
2
10.5
2.6 - 3.5
3
11.5
3.6 - 4.5
4
CNB
M4 x 0.7
8.7
0.7 - 1.6
1
6.0
13.2
9.5
9.5
1.7 - 2.7
2
10.2
2.8 - 3.5
3
CNB
M5 x 0.8
8.7
0.7 - 1.6
1
6.5
13.2
9.5
9.5
1.7 - 2.7
2
10.2
2.8 - 3.5
3
CNB
M6 x 1.0
8.7
0.7 - 1.6
1
6.5
13.2
9.5
9.5
1.7 - 2.7
2
10.2
2.8 - 3.5
3
CNB
M8 x 1.25
10.4
1.0 - 1.7
1
7.8
16.0
12.3
12.0
1.8 - 3.2
2
13.5
3.3 - 4.7
3
14.5
4.8 - 5.5
4
CNB
M10 x 1.5
10.4
1.0 - 1.7
1
7.8
16.0
12.3
12.0
1.8 - 3.2
2
13.5
3.3 - 4.7
3
14.5
4.8 - 6.2
4
Info
A cage nut consists of a square nut in a spring steel cage which wraps around the nut. The cage has two lugs that
when compressed allow the cage to be inserted into a square hole. When the lugs are released, they hold the nut in
position behind the hole.
Using cage nuts provides several benefits over threaded holes. It permits a range of choice of nut and bolts size. If a
screw is over-tightened, the nut can easily be replaced, unlike a pre-threaded hole with stripped threads. Cage nuts
are easy to use on materials too thin or soft to be threaded.
The nut is slightly loose in the cage to allow for minor adjustments in alignment, reducing the likelihood that the
threads will be stripped during equipment installation and removal. The dimensions of the spring steel lugs
determines thickness of the panel into which the cage nut may be fitted. The cage / lug dimensions determine the
range of hole sizes into which the cage nut can be fitted.
Cage nuts are commonly used in the mounting rails of equipment racks for example.
CAGE NUTS
