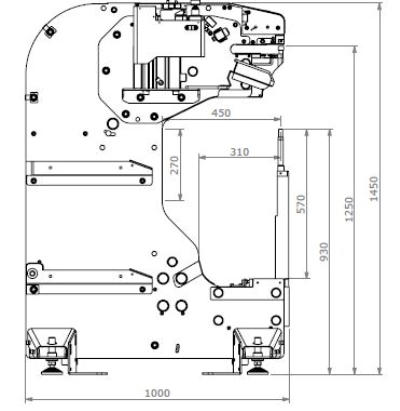

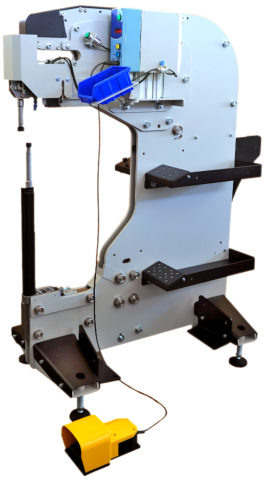

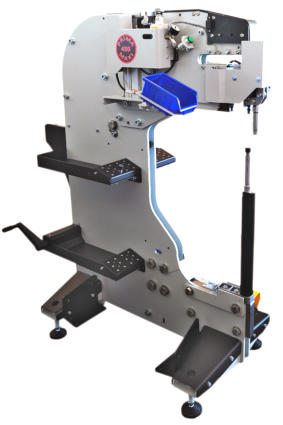

Introducing the Maxiserter installation press for Self-Clinching fasteners and Rivet Bushes. Following on from the highly successful Primaserter, with a throat depth of 450mm, the Maxiserter has been designed to offer customers who work with larger chassis the ability and flexibility to install fasteners into panels that is just not possible without the very large throat depths often necessitating bespoke installation equipment. Versatility and Flexibility The design of the Maxiserter ensures that fasteners can be installed into panel sizes and shapes that isn’t normally possible. With additional accessories or frames it is possible to install fasteners into tube section or even inside boxes with widths up to 100mm and a depths up to 450 mm.   The standard anvils are non concentric allowing fasteners to be installed right at the edge or close to a fold in the panel.
PRIMASERTER

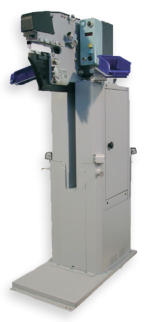

Introducing the Primaserter installation press for Self-Clinching fasteners and Rivet Bushes. In the base configuration, with a 200mm throat depth, the Primaserter is able to install a wide variety of Self-Clinching fasteners and Rivet Bushes into panels up to 3mm thick. With the addition of custom anvils it is possible to install into panels up to 5mm thick. Two accessory C-Frames and a reverse anvil holder are available to allow for insertion in to larger or complex shaped panels. Designed for safety, reliability and ease of use, with a build quality that belies its price. Insertion force is adjustable up to 6 tons and pneumatic power means speed, consistency, simple operation and minimal maintenance. With quick tooling changeover, it's an ideal solution for those short production runs. Main head unit available for bench mounting and with fixed or air powered risable stands.
Primaserter Fastener Insertion Press Primaserter Fastener Insertion Press with C Frames Primaserter Fastener Insertion Press Primaserter Fastener Insertion Press Primaserter Fastener Insertion Press Primaserter Fastener Insertion Press Primaserter with reverse flange anvil for c-shaped work
Force range: 280kg - 6,000kg
Installs fasteners in up to 3mm panels as standard
Interchangeable accessories for the most complex installations
Requires 6 - 10 Bar compressed air supply and 220v/100w or 110v/100w single phase supply
Standard Press with Fixed Stand
Accessory No.2 (C-Frames)

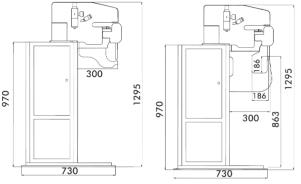

Primaserter Head Unit Dimensions Primaserter Stand Option Dimensions Primaserter Stand Option Dimensions Primaserter Stand Option Dimensions Primaserter Stand Option Dimensions Primaserter Stand Option Dimensions
Head Unit
Accessory No.1
Accessory No.2
Fixed Stand
Risable Stand
MAXISERTER
Primaserter Fastener Insertion Press CE Mark Maxiserter Fastener Insertion Press Maxiserter Fastener Insertion Press
Force range: 280kg - 7,000kg
Installs fasteners in up to 3mm panels as standard
Interchangeable accessories for the most complex installations
Requires 6 - 10 Bar compressed air supply and 220v/100w or 110v/100w single phase supply
Safety Feature The small 3mm gap between the punch and anvil on the first part of the cycle ensures operator safety as only a small clamping load (<25Kg) is applied prior to full cycling of the ram. Any operator interference (such as a finger between punch and anvil) results in the punch resetting and an error on the digital readout.
Safety Feature The small 3mm gap between the punch and anvil on the first part of the cycle ensures operator safety as only a small clamping load (<25Kg) is applied prior to full cycling of the ram. Any operator interference (such as a finger between punch and anvil) results in the punch resetting and an error on the digital readout.
