Installation Method & Performance
Performance
Do not remove any extra material or
chamfer the hole as this could result in
improper installation or reduced
performance.
Ensure that attention is paid to the
minimum hole centreline to edge
dimension for each fastener. Installing
too close to an edge or bend could result
in improper installation or reduced
performance. Minimum centreline to
edge dimensions shown for each
fastener apply to one edge only. If this
distance is applied on multiple sides
there will be significant panel distortion
unless the panel edges are supported
during installation.
First prepare the specified hole in the panel.
Place the fastener in the anvil with the shank facing up like in
the diagram above. Locate the panel mounting hole over the
shank of the fastener.
Ensuring the panel is held level, apply a parallel squeezing force until the shoulder of the fastener is seated
against the panel. Do not over squeeze the fastener into the panel as this will result in panel deformation
or damage.
When installing broaching fasteners, please pay attention to the minimum hole centreline to edge and
parent material hardness limitations.
PUNCH
ANVIL
ANVIL
Installation (kN)
1.0
Push-out (N)
240
Test Sheet Material
1.6mm FR4 Epoxy Laminate
All performance figures are averages obtained over a range of installations and should be used for guidance only. Panel material, hole
preparation, installation tooling and method can affect part performance. We always recommend that you carry out your own tests in the actual
application. Please call our sales team and we will be happy to provide you with samples as well as offering technical assistance.
A
ANVIL
Thread Major
Dia. +2.0mm
PUNCH
Max. screw
extension
Anvil Dimensions
B
±0.5
7.50
A
±0.05
8.45
Thread size
M3
Plastic retaining ring is subject to 250°F / 120°C temperature limit. (1) Screw may protrude by 0.13mm beyond normal dimensions,
Material & Finish
Stainless Steel (A2)
Maximum recommended
panel hardness: 55HRB
Part Number Examples
Part number is made up as follows:
(Type)-(Thread code)-(Screw Length Code)-(Material/Finish code)
For example:
CBPF-M3-40-ET (Broaching Panel Fastener-M3-0.0mm screw length when
open- stainless steel)
CBPF-M3-62-ET (Broaching Panel Fastener-M3-3.2mm screw length when
open- stainless steel)
Downloadable Data Sheet
Back
Dimensional
Thread
size
Min.
panel
thickness
D
±0.25
Min. CL
to edge
of panel
Hole size
+0.08 -0.0
C
±0.08
E
±0.13
Screw
length
code
L1(1)
±0.64
L2
±0.4
H2
Max.
H1
Nom.
S
Max.
Info
Broaching Panel Fasteners provide a captivated spring loaded screw in situations where panel to panel attachment
is needed and subsequent access is required. They reduce loose components and so reduce the risk of loose
hardware being lost or falling out and damaging internal components. Actuation can be by tool or hand.
Broaching Panel Fasteners are suitable for use in non-ductile materials such as printed circuit board, polycarbonate,
acrylic, glass epoxy and resin laminate components as well as ductile panels with a maximum hardness of 60HRB
Featuring an axially knurled shank, the serrations are designed to cut into the panel material as it is installed,
resulting in an interference fit that offers good torque-to-turn resistance and pull-out performance. Installation is
simple, prepare the specified hole and using a pocket punch and appropriate anvil, apply a parallel squeezing force
to press the part into the hole. When installing in printed circuit board, broaching standoffs are suitable for use in
non-plated holes only.
Available with an M3 thread and various screw lengths in stainless steel, broaching panel fasteners are suitable for
installation in panels with a maximum hardness of 55HRB.

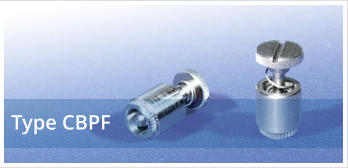

BROACHING
