Specialist Fasteners for Sheet Metal
+44 (0) 1302 836010
+44 (0) 1302 836012
Tel:
Fax:
sales@npfasteners.com
Quality
Service
Reliability
Northern Precision Ltd YouTube Channel
Installation Method & Performance
Performance
√  X
Do not remove any extra material or chamfer the hole as this could result in improper installation or reduced performance.
Ensure that attention is paid to the minimum hole centreline to edge dimension for each fastener. Installing too close to an edge or bend could result in improper installation or reduced performance. Minimum centreline to edge dimensions shown for each fastener apply to one edge only. If this distance is applied on multiple sides there will be significant panel distortion unless the panel edges are supported during installation.
X  √  Min C/L to Edge Min C/L to Edge
First prepare the specified hole in the panel.   Place the fastener in the anvil with the shank facing up like in the diagram above. Locate the panel mounting hole over the shank of the fastener. Ensuring the panel is held level, apply a parallel squeezing force until the shoulder of the fastener is seated against the panel and the spigot is flared. Do not over squeeze the fastener into the panel as this will result in panel deformation or damage.   When installing flare-mounted broaching standoffs, please pay attention to the minimum hole centreline to edge limitations. Flaring Punch detail is per end user requirement to achieve desired spigot profile
A Length of standoff -2.50mm min. PUNCH ANVIL PUNCH ANVIL HRB (ROCKWELL HARDNESS B SCALE) Ensure that you are installing into a panel that is at or below the published maximum recommended hardness for the fastener.
A ±0.05
8.97
5.79
Thread code
M4
M3
Anvil Dimensions
Thread code
Installation (kN)
4.5
6.0
Pull-out (N)
550
700
Torque-out (Nm)
2.0
3.2
Test Sheet Material
1.6mm FR4 Epoxy Laminate
1.6mm FR4 Epoxy Laminate
M3
M4
All performance figures are averages obtained over a range of installations and should be used for guidance only. Panel material, hole preparation, installation tooling and method can affect part performance. We always recommend that you carry out your own tests in the actual application. Please call our sales team and we will be happy to provide you with samples as well as offering technical assistance.
Material & Finish
Electro Tin Plated Brass (ET)
Part Number Examples
Part number is made up as follows: (Type)-(Thread code)-(Length)-(Material/Finish code) For example: CBSOF-M3-8-ET (Flare-Mounted Broaching Standoff-M3-8mm long-electro tin plated brass)
RoHS REACH COMPLIANT

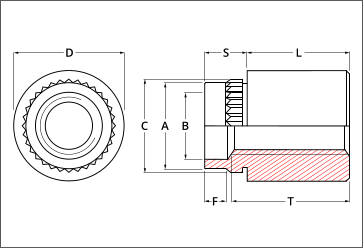

Dimensional
Thread size M3 x 0.5 M4 x 0.7 Hole size +0.13 -0.3 4.22 6.40 B 0.08 3.23 5.23 Min. CL to edge of panel 4.33 6.36 A Max. 4.20 6.33 C 0.08 4.55 6.68 Panel thickness 1.27 - 1.65 1.27 - 1.65 D 0.13 5.56 8.74 F 0.25 1.00 1.00 S Max. 2.29 2.29
Info

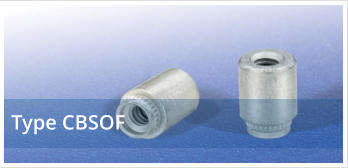

Flare-mounted broaching standoffs provide strong reusable threads in a spacer format in non-ductile materials such as printed circuit board, polycarbonate, acrylic, glass epoxy and resin laminate components. Featuring an axially knurled shank combined with a spigot that is flared out during installation, the serrations are designed to cut into the panel material as it is installed, resulting in an interference fit that offers good torque-to- turn resistance while the flared spigot provides increased pull-out performance. Installation is simple, prepare the specified hole and using a flaring punch and appropriate anvil, apply a parallel squeezing force to press the part into the hole. When installing in printed circuit board, flare-mounted broaching standoffs are suitable for use in non-plated holes only. Available from stock in metric thread sizes in electro tin plated brass.
Broaching Flare-Mounted Standoffs  for Printed Circuit Board
BROACHING FLARE-MOUNTED STANDOFFS
Length (L) ±0.13
Minimum thread length (T) (where applicable)
3
4
5
6
8
10
12
14
16
Fully threaded
9.50 ±0.40
flare mounted broaching standoffs
