Installation Method
Using your prefered type of
installation tool. KJ60 air tool
and N200 hand tool shown for
reference only.
Ensuring that you are using the
correct grip size rivet nut for the
panel you will be installing into,
screw the rivet nut fully on to
the tools threaded mandrel.
Follow the instructions specific
to your tool to set the correct
stroke length for proper rivet
nut placement. Fully insert the
rivet nut into the hole in the
work piece.
Ensuring that you are holding
the tool perpendicular to the
work piece, operate the tool to
set the rivet nut in place.
Unscrew the threaded mandrel
from the rivet nut.
That’s it. Your rivet nut is now
installed.
To ensure that the rivet nut
performs as intended it is
important that an optimum
bulge is formed.
Material & Finish
Electro Zinc Plated Steel (SZ)
A2 Stainless Steel (A2)
Aluminium (AL) - To Order
Part Number Examples
Part number is made up as follows:
(Type)-(Thread code)-(Grip Code)-(Material/Finish code)
For example:
CRSBK-M5-25-SZ (Countersunk Head Closed End Rivet Nut-M5-suitable for
0.5-2.5mm sheet thickness-electro zinc plated steel)
CRSBK-M8-30-A2 (Countersunk Head Closed End Rivet Nut-M8-suitable for
0.5-3.0mm sheet thickness-stainless steel)
Thread
Size
M4 x 0.7
M5 x 0.8
M6 x 1.0
M8 x 1.25
Hole Size
+0.1 -0.0
6.00
7.00
9.00
11.00
D
+0.25 -0.10
9.00
10.00
12.30
1500
L
±0.30
17.50
19.40
21.50
L2
Ref.
11.3
11.5
12.7
14.8
Grip
Code
25
30
30
To suit panel
thickness
(min - max)
16.70
20
0.5 - 2.0
0.5 - 2.5
0.5 - 3.0
0.5 - 3.0
S
±0.15
0.80
1.00
1.30
1.50
B
+0.08 -0.10
5.90
6.90
8.90
10.90
M10 x 1.5
13.00
17.0
26.90
19.2
40
1.0 - 4.0
1.60
12.90
18.70
40
2.0 - 4.0
19.50
50
2.5 - 5.0
21.20
50
3.0 - 5.0
24.00
55
3.0 - 5.5
Panel thickness ranges shown are preferred range. Other sizes are subject to availability or special order.

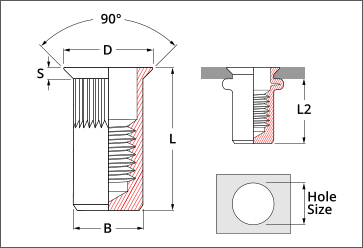

Dimensional
Info
Countersunk Head Closed End Splined Body Rivet nuts provide a strong captivated thread in thin panels and in
applications where only one side of the panel is accessible such as box or tube section.
Available in steel and stainless steel, they can be installed into panels as thin as 0.5mm and do not suffer from the
maximum hardness limitations of self-clinching nuts so are suitable for installation into hard or non-ductile panels.
Requiring special tooling for installation - tools range from very low cost hand tools for low volume, to air powered
automatic installation guns for high volume applications.
Rivet nuts have an advantage over other captivated fasteners because they can be installed on site or used for
repair work to replace a previously installed fastener that has failed. The advantage of installation from one side of
the application means that access to the back of the panel is never required.

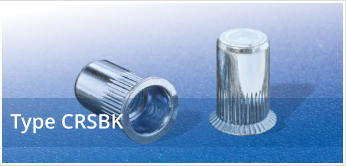

RIVET NUT
