Installation Method
Using your prefered type of
installation tool. KJ60 air tool
and N200 hand tool shown for
reference only.
Ensuring that you are using the
correct grip size rivet nut for the
panel you will be installing into,
screw the rivet nut fully on to
the tools threaded mandrel.
Follow the instructions specific
to your tool to set the correct
stroke length for proper rivet
nut placement. Fully insert the
rivet nut into the hole in the
work piece.
Ensuring that you are holding
the tool perpendicular to the
work piece, operate the tool to
set the rivet nut in place.
Unscrew the threaded mandrel
from the rivet nut.
That’s it. Your rivet nut is now
installed.
To ensure that the rivet nut
performs as intended it is
important that an optimum
bulge is formed.
Material & Finish
Heavy Duty Electro Zinc Plated Steel (ZI96)
Heavy Duty Electro Zinc Plated Steel for up to
12.9 bolts (HTZI96)
Stainless Steel (A2)
Stainless Steel for up to 12.9 bolts (HTS)
Aluminium (AL)
Aluminium (AL) for up to 8.8 bolts (HTA)
Brass (BR)
Part Number Examples
Part number is made up as follows:
(Type) (Thread code) (Grip Code) (Material/Finish code)
For example:
OPTI-BCLFKN M5 2030 ZI96 (BCT Large Flange Bulge
Controlled Splined Body-M6-suitable for 2.0-3.0mm panel
thickness-heavy duty electro zinc plated steel)
OPTI-BCLFKN M8 3050 AL (BCT Large Flange Bulge Controlled
Splined Body-M8-suitable for 3.0-5.0mm panel thickness-high
strength aluminium)
M4 x 0.7
7.0
10.00
14.5
1525
1.5 - 2.5
0.80
6.90
15.5
2535
2.5 - 3.5
8.0
16.5
3545
3.5 - 4.5
17.5
4555
4.5 - 5.5
1.5

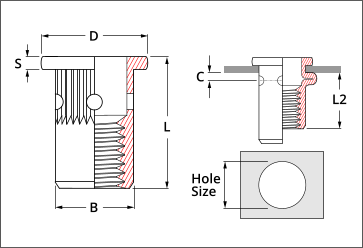

Dimensional
Thread
Size
Hole Size
+0.1 -0.0
D
L
Nom.
L2
Ref.
Grip
Code
To suit panel
thickness
(min - max)
S
B
±0.09
M8 x 1.25
11.0
16.00
20.5
1030
1.0 - 3.0
1.50
10.90
24.0
3050
3.0 - 5.0
12.5
26.0
4565
4.5 - 6.5
28.0
6080
6.0 - 8.0
M10 x 1.5
13.0
19.00
26.0
1035
1.0 - 3.5
2.00
12.90
29.0
3560
3.5 - 6.0
16.0
34.0
6085
6.0 - 8.5
C
Min.
2.3
2.7
M6 x 1.0
9.0
13.00
19.5
0525
0.5 - 2.5
1.50
8.90
20.0
2540
2.5 - 4.0
10.5
21.5
4055
4.0 - 5.5
23.0
5570
5.5 - 7.0
2.0
M5 x 0.8
8.0
11.00
17.0
0520
0.5 - 2.0
1.00
7.90
18.0
2030
2.0 - 3.0
10.0
19.0
3040
3.0 - 4.0
20.0
4050
4.0 - 5.0
1.8
0515
0.5 - 1.5
14.0
Info

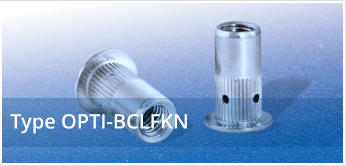

BCT Large Flange Bulge Controlled Splined Body is a new type of high performance rivet nut designed to provide
much improved performance over conventional rivet nuts.
BCT provides a strong captivated thread in panels and is ideally suited to applications where only one side of the
panel is accessible such as box or tube section.
Unlike conventional rivet nuts, BCT Bulge Controlled features a controlled upset point and larger bulge formation
which allows for perfect installation even in oversize or irregular holes. The bulge is formed without placing load on
the panel or hole wall, so they are especially suitable for use in softer or brittle materials such as composites or
sandwich sections for example.
Available in thread sizes M4 to M10, in RoHS compliant heavy duty electro zinc plated steel (giving 96 hour salt spray
protection), heavy duty electro zinc plated high strength steel suitable for use with up to 12.9 bolts, 304 stainless
steel, high strength stainless steel suitable for use with up to 12.9 bolts, aluminium, high strength aluminium
suitable for use with up to 8.8 bolts and brass. They can be installed into panels as thin as 0.5mm and as thick as
8.5mm. In addition to standard grips they can also be manufactured in grip ranges to suit your exact application
requirement.
Requiring the same installation tooling as conventional rivet nuts, tools range
from very low cost hand tools for low volume, to air powered automatic
installation guns for high volume applications.
BCT has an advantage over other captivated fasteners because they can be
installed on site or used for repair work to replace a previously installed
fastener that has failed. The advantage of installation from one side of the
application means that access to the back of the panel is never required.
BCT is a registered trademark of BBA srl.
