Installation Method
Using your prefered type of
installation tool. KJ60 air tool
and N200 hand tool shown for
reference only.
Ensuring that you are using the
correct grip size rivet nut for the
panel you will be installing into,
screw the rivet nut fully on to
the tools threaded mandrel.
Follow the instructions specific
to your tool to set the correct
stroke length for proper rivet
nut placement. Fully insert the
rivet nut into the hole in the
work piece.
Ensuring that you are holding
the tool perpendicular to the
work piece, operate the tool to
set the rivet nut in place.
Unscrew the threaded mandrel
from the rivet nut.
That’s it. Your rivet nut is now
installed.
To ensure that the rivet nut
performs as intended it is
important that an optimum
bulge is formed.
Material & Finish
Heavy Duty Electro Zinc Plated
Steel (ZI96)
Stainless Steel (A2)
Aluminium (AL)
Brass (BR)
Part Number Examples
Part number is made up as follows:
(Type) (Thread code) (Grip Code) (Material/Finish code)
For example:
OPTI-LF M8 080 ZI96 (BCT Large Flange Multigrip-M6-suitable for 0.5-8.0mm
panel thickness-heavy duty electro zinc plated steel)
OPTI-LF M10 070 A2 (BCT Large Flange Multigrip-M10-suitable for 0.8-7.0mm
panel thickness-stainless steel)
M6 x 1.0
9.0
10.00
16.0
045
0.5 - 4.5
1.50
8.90
17.5
060
0.5 - 6.0
10.5
21.0
090
4.0 - 9.0
M5 x 0.8
8.0
9.00
16.0
050
0.5 - 5.0
1.00
7.90
18.0
070
3.0 - 7.0
9.5

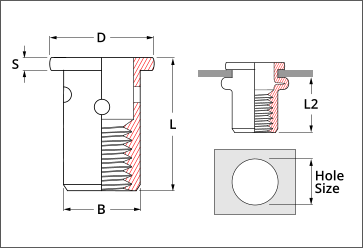

Dimensional
Thread
Size
M4 x 0.7
Hole Size
+0.1 -0.0
7.0
D
8.00
L
Nom.
L2
Ref.
Grip
Code
To suit panel
thickness
(min - max)
13.5
040
0.5 - 4.0
S
0.80
B
±0.09
6.90
15.0
055
2.5 - 5.5
8.0
10.5
070
4.0 - 7.0
M8 x 1.25
11.0
12.00
19.5
060
0.5 - 6.0
1.50
10.90
21.5
080
0.5 - 8.0
12.0
25.0
110
4.0 - 11.0
27.0
130
6.5 - 13.0
M10 x 1.5
13.0
14.00
25.0
070
0.8 - 7.0
2.00
12.90
28.0
100
1.5 - 10.0
16.0
32.0
140
5.5 - 14.0
M12 x 1.75
16.0
17.20
30.0
080
1.0 - 8.0
2.00
15.90
32.0
120
2.0 - 12.0
19.0
38.0
180
8.0 - 18.0
Info

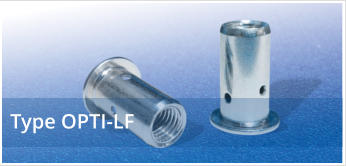

BCT Large Flange Multigrip is a new type of high performance rivet nut designed to streamline rivet nut usage and
provide much improved performance over conventional rivet nuts.
BCT provides a strong captivated thread in panels and is ideally suited to applications where only one side of the
panel is accessible such as box or tube section.
BCT Multigrip offers a much wider grip range than conventional rivet nuts. One nut will cover two grip ranges in the
smaller sizes and up to 4 grips in larger sizes, thus reducing inventory items. BCT features a bulge control design
which produces a larger bulge formation than conventional rivet nuts and controlled upset points, which allows for
perfect installation even in oversize or irregular holes. They can also be used in softer or brittle materials such as
composites or sandwich sections for example.
Available in thread sizes M4 to M12, in RoHS compliant heavy duty electro zinc plated steel (giving 96 hour salt spray
protection), 304 stainless steel, aluminium and brass, they can be installed into panels as thin as 0.5mm and as thick
as 18mm. They can also be manufactured in grip ranges to suit your exact application
requirement.
Requiring the same installation tooling as conventional rivet
nuts, tools range from very low cost hand tools for low
volume, to air powered automatic installation guns for high
volume applications.
BCT has an advantage over other captivated fasteners
because they can be installed on site or used for repair work
to replace a previously installed fastener that has failed. The
advantage of installation from one side of the application
means that access to the back of the panel is never required.
BCT is a registered trademark of BBA srl.
