Deform-Nut Guide
Deform-Nut Type TC
Installation Method
1. Drill the correct hole from one side of the panel (blind hole)
2. Insert the rivet nut in the hole
3. Using rivet nut setting tool, pull up the rivet nut to to attach it to the top skin of the sandwich panel
4. Inject structural adhesive
5. Insert and screw down the threaded adjusting insert until it reaches the bottom skin of the sandwich panel
6. Fastener is ready for use (time to full strength is dependant on structural adhesive properties)

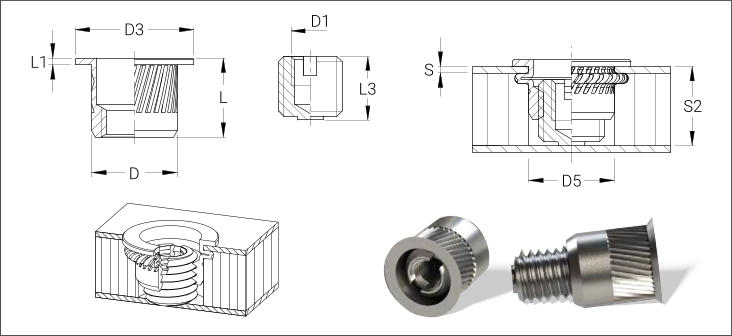

* S2 dimension variable depending on S dimension and adjusting
insert set-up.
Tolerances: ISO 2768-m Threads: ISO 6H
Material
Rivet Nut: 303 Stainless Steel
Adjusting Insert: 303 Stainless Steel
0.5 - 2.0
0.5 - 3.5
3.0 - 6.0
0.5 - 2.0
3.0 - 6.5
Part Code
D1
Thread
S
Skin
Thickness
TC/DM10XZI-M6/10X
L3
Standard
Special order
S2
Dimensional
L
D
D3
L1
D5
+0.15
-0.00
TC/DM10XZI-M6/12.5X
TC/DM10XZI-M6/15X
TC/DM10XZI-M6/17.5X
TC/DM10XZI-M6/20X
TC/DM10XZI-M6/22.5X
TC/AM10XZI-M6/20X
TC/AM10XZI-M6/22.5X
TC/BM10XZI-M6/20X
TC/BM10XZI-M6/22.5X
TC/DM12XZI-M8/15X
TC/DM12XZI-M8/20X
TC/AM12XZI-M8/25X
TC/BM12XZI-M8/25X
M6
M6
M6
M8
M8
10.0
12.5
15.0
13.0
15.5
18.0
17.5
20.5
22.5
25.5
20.0
23.0
20.0
28.0
22.5
30.0
20.0
34.0
22.5
36.0
15.0
20.0
20.0
25.0
25.0
35.0
25.0
40.0
10.5
13.0
18.0
1.0
13.0
21.0
13.0
16.0
1.5
13.0
23.5
13.0
16.0
1.5
13.0
18.5
15.0
18.0
1.5
15.0
28.0
15.0
18.0
2.0
15.0
*
9.5
12.0
14.5
17.0
22.0
19.5
20.0
22.2
22.5
25.0
17.5
20.0
25.0
28.0
M8
25.0
15.0
18.0
2.0
15.0
0.5 - 3.5
Info
Deform-Nut® is a threaded insert system that combines mechanical anchoring and structural adhesive to provide
strong load-bearing threads in sandwich panel materials (with a honeycomb or composite internal structure).
Expensive or complex solutions such as resin potting or bonding of bushes and tie rods can be avoided.
Furthermore, Deform-Nut allows you to use the same type of product in a wide range of sandwich panel materials
and thicknesses, is easy and quick to install and doesn't require any further processes or finishing after installation.
Deform-Nut can be used in any composite material panel, resins, carbon fibre, light alloy, and more.
DEFORM-NUT®
Type TC
Min
Max
