Keep-Nut Guide
Keep-Nut Flush
Keep-Nut Flanged
Keep-Nut Stud
Master-Plate Guide
Master-Plate Stud
Master-Plate Blind Standoff
Master-Plate Through
Standoff
Master-Plate Through Nut
Deform-Nut Guide
Deform-Nut Type TC
Installation Method
Material & Finish
Steel Electro Zinc (ZI)
316 Stainless Steel (316)
Part Number Examples
Part number is made up as follows:
(Type code) (Base code) (Thread code) (Material code)
For example:
DRP T2300 M8 316 (Master-Plate Through Nut) (23mm Ø round base plate)
(M8 thread) (316 stainless steel)
Part Code

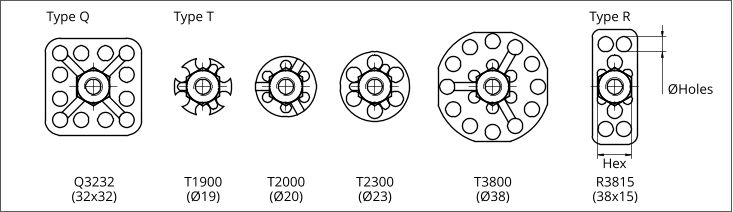

Type / Base /
Thread / Material
d1
Thread
Hex
A/F
Sp
DRP Q3232 M4 --
Ø
Holes
OD
DRP T1900 M4 --
DRP T2000 M4 --
DRP T2300 M4 --
DRP T3800 M4 --
DRP R3815 M4 --
DRP Q3232 M5 --
DRP T1900 M5 --
DRP T2000 M5 --
DRP T2300 M5 --
DRP T3800 M5 --
DRP R3815 M5 --
DRP Q3232 M6 --
DRP T1900 M6 --
DRP T2000 M6 --
DRP T2300 M6 --
DRP T3800 M6 --
DRP R3815 M6 --
DRP Q3232 M8 --
DRP T1900 M8 --
DRP T2000 M8 --
DRP T2300 M8 --
DRP T3800 M8 --
DRP R3815 M8 --
Standard
Special order
5
5
4
5
5
5
5
5
4
5
5
5
5
5
4
5
5
5
5
5
4
5
5
5
DRP Q3232 M10 --
DRP T1900 M10 --
DRP T2000 M10 --
DRP T2300 M10 --
DRP T3800 M10 --
DRP R3815 M10 --
M4
M5
M6
M8
M10
7
8
10
13
17
7.8
8.9
11.1
14.4
19.0
5
5
4
5
5
5

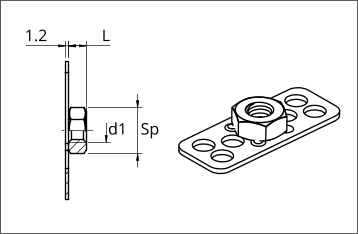

L
+1.0 -0.0
Dimensional
3.2
4
5
6.5
8
Also available to special order as
blind version. Specify type: DRC
Info

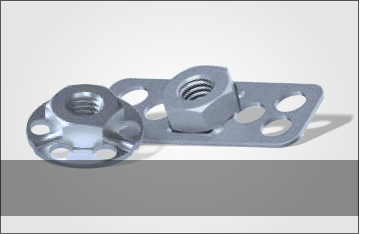

Master-Plate® bonding fasteners are available in a combination of base plate styles, in stud, standoff and nut
configurations.
Master-Plate is a cost effective, secure and reliable method of integrating male or female threads into composite,
fibreglass, laminate and carbon fibre applications.
Suitable for surface bonding using adhesive or embedding during the forming process, Master-Plate is ideal for
composites, fibreglass, carbon fibre, moulding compounds, plastics, laminated timber, stone etc.
Available in standard sizes, in thread sizes M4 - M8 for studs and M4 - M10 for standoffs and nuts, in zinc plated
steel and 316 stainless steel.
Custom base plate, fastener type, thread / body lengths can be produced to order.
Base plate options
Adhesive type
Composites
Plastic
Wood
Metal
Natural
Stone
Conglomerates
Glass
PLEXUS MA300
L
OCTITE 9466
L
OCTITE 3425
Commonly used bonding adhesives and materials compatibility
Recommended
Reasonable
Not suitable
Please refer to adhesive manufacturer specifications for guidance.
Prepare the panel surface by
cleaning thoroughly with IPA.
Ensuring the adhesive is fully
mixed, dispense sufficient
adhesive for the application.
Locate the Master-Plate
fastener over the adhesive.
Firmly press the Master-Plate
fastener into the adhesive until
adhesive flows through the
holes in the base plate.
Following the adhesive
manufacturers instructions,
allow sufficient curing time.
Once the adhesive is fully
cured, the Master-Plate
fastener is ready for use.
Alternatively Master-Plate fasteners can be embedded directly during the composite moulding process.
TYPE DRP
MASTER-PLATE®
THROUGH NUT
