Capacitor Discharge Weld
Studs & Pins
Capacitor Discharge Weld
Standoffs
Capacitor Discharge Earth
Tags
Projection Weld Bolts & Pins
Hexagon Weld Nuts
Square Weld Nuts
Material & Finish
Unplated Steel (X)
Stainless Steel (A2)
Part Number Examples
Part number is made up as follows:
(Type)-(Thread)-(Material/Finish code)
For example:
WN-M8-X (Hexagon Weld Nut-M8-unplated steel)
WN-M10-A2 (Hexagon Weld Nut-M10-stainless steel)
Downloadable Data Sheet
Back
Dimensional
Info
Resistance welding is a process by where current and pressure are used to bond two pieces of metal. Resistance
welding requires force in the bonding process. Pressure is used to hold two pieces of metal together while they are
cooling. This also allows for the metals to properly bond together. The necessary pressure for the bonding process
is typically applied by the machine or manually by the operator.

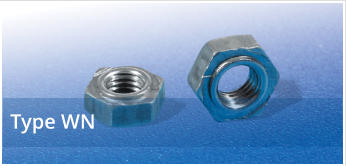

Hexagon weld nuts feature three precision weld projections located on the head. This design allows for attachment
of the fastener on the topside of the panel. The three equispaced projections are of equal height and size allowing
for a properly balanced and positioned weld.
Hexagon weld nuts are designed for through-hole applications and are self-locating, eliminating the need for
additional jigging.
Hexagon weld nuts are available in a range of thread sizes, manufactured from steel and stainless steel and are
suitable for use with compatible panel materials.
Hexagon weld nuts require appropriate resistance welding equipment for attachment.
HEXAGON WELD NUTS
DIN 929
