Specialist Fasteners for Sheet Metal
+44 (0) 1302 836010
+44 (0) 1302 831555
Tel:
Fax:
sales@npfasteners.com
Quality
Service
Reliability
Northern Precision Ltd YouTube Channel
Material & Finish
300 Series Stainless Steel (A2) parts are suitable for installation in ductile panels with a maximum recommended hardness of 70 HRB.
Part Number Examples
Part number is made up as follows: (Type)-(Thread)-(Screw length code)-(Material/Finish Code) For example: NPFP-M4-72-A2 (Phillips Head Panel Fastener-M4 thread-11.1mm screw length-stainless steel)
RoHS REACH COMPLIANT
Info
Self-Clinching Phillips Head Panel Fasteners provide a captivated spring loaded screw for use in thin sheet metal where panel to panel attachment is needed and subsequent access is required. They reduce loose components and so reduce the risk of loose hardware being lost or falling out and damaging internal components. Featuring a fully recessed head, actuation is by tool only. Utilising a special proven clinch feature, this fastener has excellent pull-out and push-out characteristics whilst providing a flush finish on the underside of the panel. Like all self clinching fasteners they are installed using a parallel squeezing action, so require access to both sides of the panel.   Self-Clinching Phillips Head Panel Fasteners are available in a range of thread sizes and screw lengths, manufactured from 300 series stainless steel, electro nickel plated carbon steel and are suitable for installation in ductile panels with a recommended maximum hardness of 70 HRB for stainless steel parts and 80 HRB for 300 steel parts.

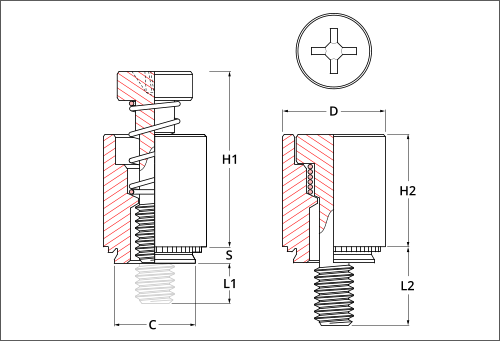

Dimensional
Screw length code
40
62
50
72
94
50
72
94
60
82
04
Thread size
M3 x 0.5
M4 x 0.7
M5 x 0.8
M6 x 1.0
L1 ±0.64
0.00
3.20
0.00
3.20
6.40
0.00
3.20
6.40
0.00
3.20
6.40
L2 ±0.40
6.40
9.50
7.90
11.10
14.30
7.90
11.10
14.30
9.50
12.70
15.90
C Max.
6.71
7.90
8.72
10.47
D ±0.25
7.92
9.53
10.31
11.89
H1 Nom.
13.72
17.91
17.91
22.99
H2 Max.
9.40
12.19
12.45
15.75
S Max.
1.53
1.53
1.53
1.53
Min. sheet thickness
1.53
1.53
1.53
1.53
Hole sze +0.08 -0.0
6.73
7.92
8.74
10.49
Min CL to edge of panel
6.35
7.87
8.63
9.65
Driver size
#1
#2
#2
#3
Self Clinching Phillips Head Panel Fasteners
Type NPFP
SELF-CLINCHING PHILLIPS HEAD PANEL FASTENERS
