Material & Finish
Aluminium Body (Al Mg 2.5) / Steel+Zinc Mandrel (AL/ST) Aluminium Body (Al Mg 2.5) / Stainless (304) Mandrel (AL/A2) Steel+Zinc Body / Steel+Zinc Mandrel (ST/ST) *Shear & Tensile performance is based on Aluminium/Steel. For performance figures for other materials please contact us.
Part Number Examples
Part number is made up as follows: (Type)-(Size Code)-(Material & Finish Code)-(Optional Colour) For example: RMG-3208-AL/ST (Multigrip Dome Head Rivet-3.2mm body to suit 0.5-5mm grip-aluminium body/zinc plated steel mandrel) RMG-4815-AL/A2 (Multigrip Dome Head Rivet-4.8mm body to suit 4.5-11mm grip-aluminium body/304 stainless steel mandrel)
RoHS REACH COMPLIANT
All dimensions are in mm

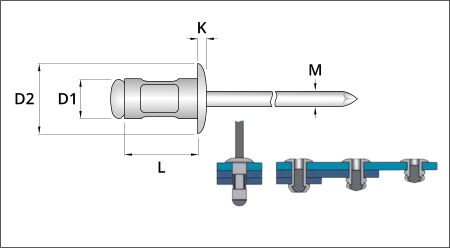

Dimensional
Shear (N)*
Tensile (N)*
Grip Range
L Nom.
630
980
0.5 - 5.0 1.5 - 6.5 4.0 - 8.0
8 9.5 11
1050
1400
0.5 - 3.5 1.0 - 4.0 2.0 - 6.0 4.0 - 9.0 6.0 - 13.0
6.8 9.5 11 12.5 16.5
1500
2300
1.5 - 6.5 4.5 - 11.0 6.5 - 12.5 8.5 - 14.5 12.5 - 20.0
10.5 15 16.5 19.5 24.5
2800
4000
1.0 - 6.0 4.0 - 9.0 6.0 - 12.0
12 15 18
D1
3.2
4.0
4.8
6.4
K
1.10
1.40
1.60
1.80
Hole Size
3.30 to 3.50
4.10 to 4.30
4.90 to 5.10
6.50 to 6.70
D2
6.20
8.20
9.90
13.00
M
1.80
2.20
2.75
3.60
Size Code
3208 3209 3211
4006 4009 4011 4012 4016
4810 4815 4816 4819 4824
6412 6415 6418
Info
Blind Rivets (often referred to as breakstem rivets) allow two or more similar or different materials to be joined together from one side of the application. Available in a combination of diameters, grip-ranges and materials, multigrip dome head rivets are a highly versatile and cost effective, industry proven joining method. This is the most versatile type of head, providing enough bearing surface to retain all kinds of materials. Covering multiple grip ranges, with a resulting good appearance on both sides, filling the hole perfectly, they are especially suitable for working with plastics and thin metal sheets. Installation is simple, with tooling ranging from cheap pistol-grip style guns to air-powered placement equipment suitable for production line work.   Applications include, automotive, aerospace, furniture, restoration, sheet metal fabrication etc.
TYPE RMG
Multigrip Dome Head Breakstem Rivets
MULTIGRIP RIVETS DOME HEAD
dome head multigrip blind rivets
