BLIND RIVETS

Standard Rivets Dome Head Standard Rivets Countersunk Head Standard Rivets Large Head Multigrip Rivets Dome Head Multigrip Rivets Countersunk Head Multigrip Rivets Large Head Peel Rivets Domed Head Peel Rivets Large Head Sealed Rivets Dome Head Sealed Rivets Countersunk Head Sealed Rivets Large Head Grooved Rivets Dome Head Installation Tools, Spares and Servicing

Material & Finish

Aluminium Body (Al Mg 3.5) / Steel+Zinc Mandrel (AL/ST) Steel+Zinc Body / Steel+Zinc Mandrel (ST/ST) *Shear & Tensile performance is based on Aluminium/Steel. For performance figures for other materials please contact us.

Part Number Examples

Part number is made up as follows: (Type)-(Size Code)-(Material & Finish Code)-(Optional Colour) For example: RPEEL-3210-AL/ST (Peel Dome Head Rivet-3.2mm body to suit 5mm grip-aluminium body/zinc plated steel mandrel) RPEEL-6480-ST/ST (Peel Dome Head Rivet-6.4mm body to suit 70mm grip-zinc plated steel body/zinc plated steel mandrel)

Downloadable Data Sheet Back

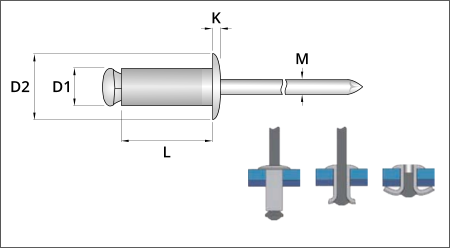

All dimensions are in mm

Dimensional

Shear (N)*

Tensile (N)*

Grip Range

L Nom.

1000

1200

3.5 5.0 7.0 9.0 11.0 13.0

8 10 12 14 16 18

1200

1400

4.0 6.0 8.0 10.0 12.0 14.0 16.0 21.0

8 10 12 14 16 18 20 25

1800

2000

5.0 7.0 9.0 11.0 13.0 16.0 19.0 22.0 25.0 27.0 30.0 32.0 37.0 42.0

10 12 14 16 18 21 24 27 30 32 35 40 45 50

2000

2100

32.0 37.0 42.0 47.0 52.0 57.0 62.0 68.0 72.0 80.0 90.0 100.0 110.0 120.0 130.0 140.0 150.0 160.0 170.0 180.0

40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 180 190

2450

3500

25.0 40.0 65.0 70.0 90.0 110.0 115.0 140.0 165.0 180.0

35 50 75 80 100 120 125 150 175 190

3.2

4.0

4.8

5.0

6.4

0.80

1.00

1.10

1.50

2.00

Hole Size

3.40

4.20

5.00

5.20

6.60

6.50

8.00

9.50

9.30

13.00

1.80

2.20

2.73

3.50

Size Code

3208 3210 3212 3214 3216 3218

4008 4010 4012 4014 4016 4018 4020 4025

4810 4812 4814 4816 4818 4821 4824 4827 4830 4832 4835 4840 4845 4850

5040 5045 5050 5055 5060 5065 5070 5075 5080 5090 50100 50110 50120 50130 50140 50150 50160 50170 50180 50190

6435 6450 6475 6480 64100 64120 64125 64150 64175 64190

Info

Blind Rivets (often referred to as breakstem rivets) allow two or more similar or different materials to be joined together from one side of the application. Available in a combination of diameters, grip-ranges and materials, peel dome head rivets are a highly versatile and cost effective, industry proven joining method. This is the most versatile type of head, providing enough bearing surface to retain all kinds of materials, while on the reverse side the body ‘peels’ to create a large diameter locking head. Ideal for the use in applications with soft or low resistance materials. Can be used in oversized holes. Spreads the load and clamping force over a wide area. Installation is simple, with tooling ranging from cheap pistol-grip style guns to air-powered placement equipment suitable for production line work. Applications include, automotive, aerospace, furniture, restoration, sheet metal fabrication etc.

TYPE RPEEL

PEEL RIVETS DOME HEAD
