BLIND RIVETS

Standard Rivets Dome Head Standard Rivets Countersunk Head Standard Rivets Large Head Multigrip Rivets Dome Head Multigrip Rivets Countersunk Head Multigrip Rivets Large Head Peel Rivets Domed Head Peel Rivets Large Head Sealed Rivets Dome Head Sealed Rivets Countersunk Head Sealed Rivets Large Head Grooved Rivets Dome Head Installation Tools, Spares and Servicing

Material & Finish

Aluminium Body (Al Mg 5) / Lubricated Steel Mandrel (AL/ST) Aluminium Body (Al Mg 5) / Stainless (304) Mandrel (AL/A2) Aluminium Body / Aluminium Mandrel (AL/AL) Steel+Zinc Body / Steel+Zinc Mandrel (ST/ST) Stainless Body (304) / Stainless (304) Mandrel (A2/A2) Copper Body / Lubricated Steel Mandrel (CU/ST) Copper Body / Stainless (304) Mandrel (CU/A2) *Shear & Tensile performance is based on Aluminium/Steel. For performance figures for other materials please contact us.

Part Number Examples

Part number is made up as follows: (Type)-(Size Code)-(Material & Finish Code)-(Optional Colour) For example: RSEAL-3208-AL/ST (Sealed Dome Head Rivet-3.2mm body to suit 2-3.5mm grip-aluminium body/lubricated steel mandrel) RSEAL-4818-AL/AL (Sealed Dome Head Rivet-4.8mm body to suit 11-13mm grip-aluminium body/aluminium mandrel)

Downloadable Data Sheet Back

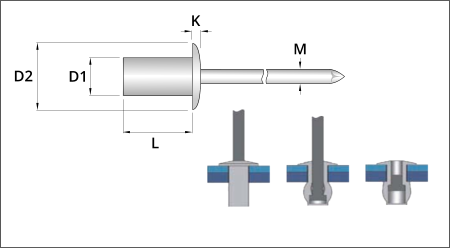

All dimensions are in mm

Dimensional

Shear (N)*

Tensile (N)*

Grip Range

L Nom.

1100

1450

0.5 - 2.0 2.0 - 3.5 3.5 - 5.0 5.0 - 6.5 6.5 - 8.0

6.5 8 9.5 11 12.5

1600

2200

0.5 - 3.5 3.5 - 5.0 5.0 - 6.5 6.5 - 8.0 8.0 - 10.0

8 9.5 11 12.5 14.5

2200

3100

0.5 - 3.5 3.5 - 5.0 5.0 - 6.5 6.5 - 8.0 8.0 - 9.5 9.5 - 11.0 11.0 - 13.0 13.0 - 16.0 16.0 - 20.0

8.5 9.5 11 13 14.5 16 18 21 25

3600

4900

1.5 - 6.5 6.5 - 9.5

12.5 15.5

3.2

4.0

4.8

6.4

1.00

1.40

1.70

2.40

Hole Size

3.30

4.10

4.90

6.50

6.40

7.90

9.30

12.50

1.65

2.20

2.65

3.60

Size Code

3206 3208 3209 3211 3212

4008 4009 4011 4012 4014

4808 4809 4811 4813 4814 4816 4818 4821 4825

6412 6415

Info

Blind Rivets (often referred to as breakstem rivets) allow two or more similar or different materials to be joined together from one side of the application. Available in a combination of diameters, grip-ranges and materials, sealed dome head rivets are a highly versatile and cost effective, industry proven joining method. This is the most versatile type of head, providing enough bearing surface to retain all kinds of materials. The sealed design ensures the joint is moisture and pressure tight, completely sealed to fluids, avoiding leakage of liquids or vapours. The mandrel is completely retained within the head, reducing the risk of electrical shorting issues or in service vibrations. Installation is simple, with tooling ranging from cheap pistol-grip style guns to air-powered placement equipment suitable for production line work. Applications include, automotive, aerospace, furniture, restoration, sheet metal fabrication etc.

TYPE RSEAL

SEALED RIVETS DOME HEAD
