Material & Finish
Aluminium Body (Al Mg 5) / Lubricated Steel Mandrel
(AL/ST)
Part Number Examples
Part number is made up as follows:
(Type)-(Size Code)-(Material & Finish Code)-(Optional
Colour)
For example:
RSEALLF-4813-AL/ST (Sealed Large Head Rivet-4.8mm
body to suit 6.5-8mm grip-aluminium body/lubricated
steel mandrel)
RSEALLF-4818-AL/ST (Sealed Large Head Rivet-4.8mm
body to suit 11-13mm grip-aluminium body/lubricated
steel mandrel)
Downloadable Data Sheet
Back

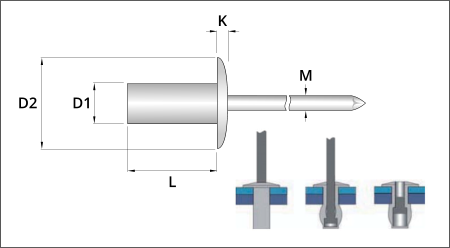

All dimensions are in mm
Dimensional
Shear
(N)
Tensile
(N)
Grip Range
L
Nom.
2200
3100
6.5 - 8.0
11.0 - 13.0
13
18
D1
4.8
K
1.80
Hole
Size
4.90
D2
14.0
M
2.65
Size
Code
4813
4818
Info
Blind Rivets (often referred to as breakstem rivets) allow two or more similar or different materials to be joined
together from one side of the application.
Available in a combination of diameters, grip-ranges and materials, sealed large head rivets are a highly versatile
and cost effective, industry proven joining method. This head style provides double the bearing area compared to
dome head rivets, they are designed for applications where a soft or brittle material is assembled to a rigid support
material. The sealed design ensures the joint is moisture and pressure tight, completely sealed to fluids, avoiding
leakage of liquids or vapours. The mandrel is completely retained within the head, reducing the risk of electrical
shorting issues or in service vibrations.
Installation is simple, with tooling ranging from cheap pistol-grip style guns to air-powered placement equipment
suitable for production line work.
Applications include, automotive, aerospace, furniture, restoration, sheet metal fabrication etc.
TYPE RSEALLF
SEALED RIVETS
LARGE HEAD
