Material & Finish
Aluminium Body (Al Mg 2.5) / Steel+Zinc Mandrel (AL/ST) Aluminium Body (Al Mg 2.5) / Stainless (304) Mandrel (AL/A2) *Shear & Tensile performance is based on Aluminium/Steel. For performance figures for other materials please contact us.
Part Number Examples
Part number is made up as follows: (Type)-(Size Code)-(Material & Finish Code)-(Optional Colour) For example: RMGCSK-3209-AL/ST (Multigrip Countersunk Head Rivet-3.2mm body to suit 1.5-6.0mm grip-aluminium body/zinc plated steel mandrel) RMGCSK-4812-AL/A2 (Multigrip Countersunk Head Rivet-4.8mm body to suit 2-7.5mm grip-aluminium body/304 stainless steel mandrel)
RoHS REACH COMPLIANT
All dimensions are in mm

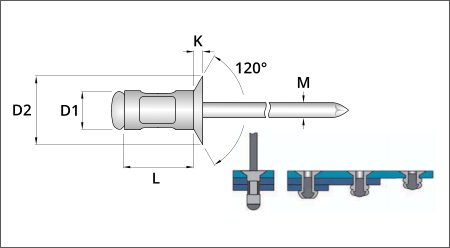

Dimensional
Shear (N)*
Tensile (N)*
Grip Range
L Nom.
630
980
1.5 - 6.0
9.5
1050
1400
2.0 - 8.0
11
1500
2400
2.0 - 7.5 6.0 - 12.0
12 16.5
D1
3.2
4.0
4.8
K
1.10
1.30
1.60
Hole Size
3.30 to 3.50
4.10 to 4.30
4.90 to 5.10
D2
5.80
7.30
8.80
M
1.80
2.20
2.75
Size Code
3209
4011
4812 4816
Info
Blind Rivets (often referred to as breakstem rivets) allow two or more similar or different materials to be joined together from one side of the application. Available in a combination of diameters, grip-ranges and materials, multigrip countersunk head rivets are a highly versatile and cost effective, industry proven joining method. This type of head allows the riveting of a larger thicknesses and is designed to appear as a flat surface, flush with application. Covering multiple grip ranges, with a resulting good appearance on both sides, filling the hole perfectly. Installation is simple, with tooling ranging from cheap pistol-grip style guns to air-powered placement equipment suitable for production line work.   Applications include, automotive, aerospace, furniture, restoration, sheet metal fabrication etc.
TYPE RMGCSK
MULTIGRIP RIVETS COUNTERSUNK HEAD
Multigrip Countersunk Head Breakstem Rivets clountersunk head mutigrip blind rivets
