Material & Finish
Aluminium Body (Al Mg 5) / Lubricated Steel Mandrel
(AL/ST)
Part Number Examples
Part number is made up as follows:
(Type)-(Size Code)-(Material & Finish Code)-(Optional
Colour)
For example:
RSEALCSK-4812-AL/ST (Sealed Countersunk Head
Rivet-4.8mm body to suit 6-8mm grip-aluminium
body/lubricated steel mandrel)
RSEALCSK-4816-AL/ST (Sealed Countersunk Head
Rivet-4.8mm body to suit 10-12mm grip-aluminium
body/lubricated steel mandrel)
Downloadable Data Sheet
Back

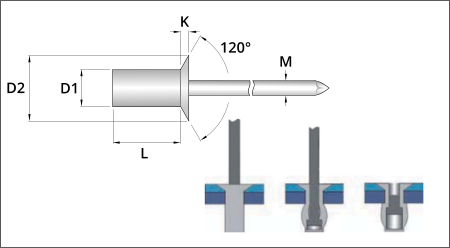

All dimensions are in mm
Dimensional
Shear
(N)
Tensile
(N)
Grip Range
L
Nom.
2200
3100
4.5 - 6.0
6.0 - 8.0
8.0 - 10.0
10.0 -12.0
13.0 - 18.0
10
12.5
14.5
16
22
D1
4.8
K
1.80
Hole
Size
4.90
D2
9.50
M
2.65
Size
Code
4810
4812
4814
4816
4822
Info
Blind Rivets (often referred to as breakstem rivets) allow two or more similar or different materials to be joined
together from one side of the application.
Available in a combination of diameters, grip-ranges and materials, sealed countersunk head rivets are a highly
versatile and cost effective, industry proven joining method. This type of head allows the riveting of a larger
thicknesses and is designed to appear as a flat surface, flush with application. The sealed design ensures the joint is
moisture and pressure tight, completely sealed to fluids, avoiding leakage of liquids or vapours. The mandrel is
completely retained within the head, reducing the risk of electrical shorting issues or in service vibrations.
Installation is simple, with tooling ranging from cheap pistol-grip style guns to air-powered placement equipment
suitable for production line work.
Applications include, automotive, aerospace, furniture, restoration, sheet metal fabrication etc.
TYPE RSEALCSK
SEALED RIVETS
COUNTERSUNK
HEAD
