BLIND RIVETS

Standard Rivets Dome Head Standard Rivets Countersunk Head Standard Rivets Large Head Multigrip Rivets Dome Head Multigrip Rivets Countersunk Head Multigrip Rivets Large Head Peel Rivets Domed Head Peel Rivets Large Head Sealed Rivets Dome Head Sealed Rivets Countersunk Head Sealed Rivets Large Head Grooved Rivets Dome Head Installation Tools, Spares and Servicing

Material & Finish

Aluminium Body (Al Mg 3.5) / Steel+Zinc Mandrel (AL/ST) Aluminium Body (Al Mg 3.5) / Stainless (304) Mandrel (AL/A2) Aluminium Body (Al Mg Si) / Aluminium Mandrel (AL/AL) Steel+Zinc Body / Steel+Zinc Mandrel (ST/ST) Stainless Body (304) / Stainless (304) Mandrel (A2/A2) Stainless Body (316) / Stainless (316) Mandrel (A4/A4) Copper Body / Steel Mandrel (CU/ST) Copper Body / Bronze Mandrel (CU/BZ) *Shear & Tensile performance is based on Aluminium/Steel. For performance figures for other materials please contact us.

Part Number Examples

Part number is made up as follows: (Type)-(Size Code)-(Material & Finish Code)-(Optional Colour) For example: RSTND-3210-AL/ST (Standard Dome Head Rivet- 3.2mm body to suit 5-7mm grip-aluminium body/zinc plated steel mandrel) RSTND-4816-A2/A2 (Standard Dome Head Rivet- 4.8mm body to suit 10-12mm grip-304 stainless steel body/304 stainless steel mandrel)

Downloadable Data Sheet Back

Dimensional

Shear (N)*

350

Tensile (N)*

550

Grip Range

0.5 - 2.0 2.0 - 4.0 4.0 - 6.0 6.0 - 8.0 8.0 - 9.5

L Nom.

4 6 8 10 12

550

850

0.5 - 1.5 0.5 - 2.5 1.5 - 3.5 1.5 - 4.5 3.5 - 5.0 4.5 - 6.0 5.0 - 7.0 7.0 - 9.0 9.0 - 11.0 11.0 - 13.0 13.0 - 15.0

4 5 6 7 8 9 10 12 14 16 18

750

1100

0.5 - 1.5 0.5 - 2.5 1.5 - 3.5 3.5 - 5.0 5.0 - 7.0 7.0 - 9.0 9.0 - 12.0 12.0 - 15.0 15.0 - 17.0

4 5 6 8 10 12 15 18 20

1250

1800

0.5 - 2.5 1.0 - 3.0 3.0 - 4.5 3.5 - 5.0 5.0 - 6.5 6.5 - 8.5 8.5 - 10.5 10.5 - 12.5 12.5 - 14.5 14.5 - 16.5 16.5 - 21.0 21.0 - 26.0 26.0 - 31.0 31.0 - 36.0

5 6 7 8 10 12 14 16 18 20 25 30 35 40

1850

2600

0.5 - 3.0 3.0 - 4.5 4.5 - 6.0 6.0 - 8.0 8.0 - 10.0 10.0 - 12.0 12.0 - 14.0 14.0 - 17.0 17.0 - 20.0 20.0 - 23.0 23.0 - 25.0 25.0 - 27.0 27.0 - 30.0 30.0 - 35.0 35.0 - 40.0 40.0 - 45.0

6 8 10 12 14 16 18 21 24 27 30 32 35 40 45 50

2150

3100

0.5 - 3.0 3.0 - 4.5 4.5 - 6.0 6.0 - 8.0 8.0 - 10.0 10.0 - 12.0 12.0 - 14.0 14.0 - 16.0 16.0 - 21.0 21.0 - 25.0 25.0 - 30.0 30.0 - 35.0 35.0 - 40.0 40.0 - 45.0

6 8 10 12 14 16 18 20 25 30 35 40 45 50

3200

4600

2.0 - 3.0 3.0 - 5.0 5.0 - 7.0 7.0 - 9.0 9.0 - 11.0 11.0 - 13.0 13.0 - 15.0 15.0 - 20.0 20.0 - 25.0 25.0 - 30.0

8 10 12 14 16 18 20 25 30 35

2.4

3.0

3.2

4.0

4.8

5.0

6.0

6.4

3400

4850

0.60

1.00

1.40

1.50

1.60

1.80

2.20

3.0 - 6.0 6.0 - 9.0 9.0 - 12.0 12.0 - 16.0 16.0 - 20.0 20.0 - 24.0 24.0 - 29.0 29.0 - 42.0

Hole Size

2.50

3.10

3.30

4.10

4.90

5.10

6.10

6.50

5.00

6.00

6.40

8.00

9.50

12.0

13.0

1.45

1.80

2.20

2.65

3.20

3.60

12 15 18 22 26 30 35 50

Size Code

2404 2406 2408 2410 2412

3004 3005 3006 3007 3008 3009 3010 3012 3014 3016 3018

3204 3205 3206 3208 3210 3212 3215 3218 3220

4005 4006 4007 4008 4010 4012 4014 4016 4018 4020 4025 4030 4035 4040

4806 4808 4810 4812 4814 4816 4818 4821 4824 4827 4830 4832 4835 4840 4845 4850

5006 5008 5010 5012 5014 5016 5018 5020 5025 5030 5035 5040 5045 5050

6008 6010 6012 6014 6016 6018 6020 6025 6030 6035

6412 6415 6418 6022 6026 6030 6035 6050

All dimensions are in mm

Info

Blind Rivets (often referred to as breakstem rivets) allow two or more similar or different materials to be joined together from one side of the application. Available in a combination of diameters, grip-ranges and materials, standard dome head rivets are a highly versatile and cost effective, industry proven joining method. This is the most versatile type of head, providing enough bearing surface to retain all kinds of materials. Installation is simple, with tooling ranging from cheap pistol-grip style guns to air-powered placement equipment suitable for production line work. Applications include, automotive, aerospace, furniture, restoration, sheet metal fabrication etc.

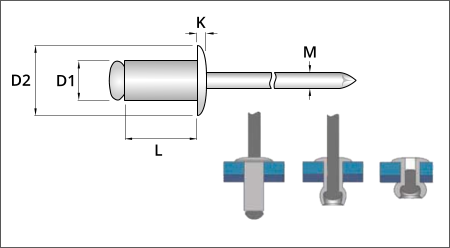

TYPE RSTND

STANDARD RIVETS DOME HEAD
