Info

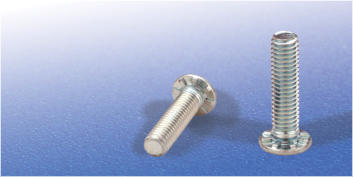

Self-Clinching Thin Panel High Strength Studs provide high strength captivated male threads in panels as thin as
1.0mm. This fastener does not install fully flush on the underside of the panel.
Utilising a special proven castellated clinch feature and a larger diameter head, this fastener has very high torque-
out, pull-through and push-out characteristics whilst providing minimal protrusion on the underside of the panel
(refer to S dimension).
Like all self clinching fasteners they are installed using a parallel squeezing action, so require access to both sides of
the panel.
Thin Panel High Strength Studs are available in a range of thread sizes and lengths, manufactured from electro zinc
plated through-hardened steel and are suitable for installation in ductile panels with a recommended maximum
hardness of 85 HRB.
Thin Panel High Strength Studs can also be supplied with a dog-point thread lead-in to aid component assembly.

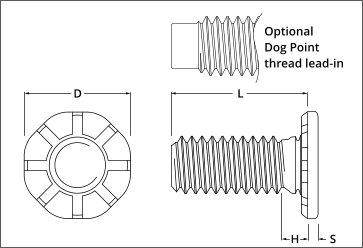

Dimensional Data
Self-Clinching fastener
Do’s & Don’ts
Self-Clinching fastener
problem solving guides
Downloadable
Data Sheet
Back
Type NHFE
SELF-CLINCHING
THIN PANEL
HIGH STRENGTH STUDS
A
Length of stud
+3.2mm min.
A
Length of stud
+3.2mm min.
90°
B
Hardened bushing with
sufficient wall thickness
to withstand applied
compression load.
Head Dia.
+ 1.6mm
Test panel.
Compression rig base.
Push-out testing of Self-Clinching Thin Panel High Strength
Studs should be performed by the gradual application of a
load as shown above.
Bushing height should be sufficient to allow free downward
movement of the stud during testing. The bushing bore must
be centred on the head of the stud.
Major Thread
Dia. + 0.08mm
M5 - 7.30mm
M6 - 8.30mm
M8 - 10.30mm
At Least 2 x minimum
recommended panel
thickness for part.
Axial pull-through (kN) load can be calculated by dividing the torque result (Nm) by (0.2 x major dia. of thread).
Hardened Hexagon Nut
Hardened counter-bored
bushing.
Test panel held
securely in vice.
