Self-Clinch in harder panels
Testing Method
Push-out testing of Self-Clinching Miniature Nuts should be
performed by the gradual application of a load as shown.
Bushing height should be sufficient to allow free downward
movement of the nut during testing. The bushing bore must be
centred on the head of the nut.
Bolt (Grade 5 min.) Ensure
full thread engagement
before applying load.
Hardened bushing with
sufficient wall thickness
to withstand applied
compression load.
Collar Dia. (A)
+ 1.6mm
Test panel.
Compression rig base.
Bolt (Grade 5 min.) A minimum
of 2 threads should extend past
the end of the fastener.
Test panel held
firmly in vice.
Flat washer
2 pitch min.

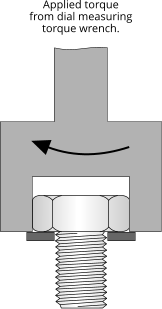

Torque-out testing of Self-Clinching Miniature Nuts should be
performed by the gradual application of torque as shown, while
the test panel is securely held in a vice. The bolt must be of a
sufficient grade to resist thread stripping.
Torque must be gradually applied until failure is observed and a
maximum applied torque reading is recorded. Failure mode is
the nut turning in the panel or fracture of the knurled collar.
Performance
Thread
code
M3
M4
M5
Installation
force (kN)
7.7
8.5
8.9
2.3
6.8
7.9
Torque-out
(Nm)
1000
1285
1320
Push-out
(N)
Installation
force (kN)
11.8
12.2
13.1
2.3
6.8
7.9
Torque-out
(Nm)
1150
1298
1555
Push-out
(N)
1.5mm Steel test panel
1.5mm Aluminium test panel
Max. rec.
tightening
torque
for mating
screw (Nm)
1.13
2.3
3.12
Locking
torque
(15 cycle
range)
(Nm)
.056 - .56
.0169 - 1.69
.226 - 2.03
All performance figures are averages obtained over a range of installations and should be used as an indicator
only. Panel material, hole preparation, installation tooling and method can affect part performance. We always
recommend that you carry out your own tests in the actual application. Please call our sales team and we will
be happy to provide you with samples as well as offering technical assistance.
First punch or drill the correct size hole. Do not deburr or chamfer
the hole prior to installation as this will remove material required
during the clinching process. It is preferable to install the fastener
from the punch side of the panel.
Place the fastener in the anvil with the shank facing up like in the diagram above. Locate the panel mounting
hole over the shank ensuring the panel is held level.
With punch and anvil surfaces parallel, apply a squeezing force until the knurled collar is flush with the top of
the panel or the shank is flush with the bottom of the panel for thinner panels. Do not over squeeze the
fastener into the panel as this will result in panel deformation. It is important that a pocketed anvil is used so
that force is applied to the knurled collar rather than the head of the fastener.
When installing Self-Clinching fasteners, please pay attention to the minimum hole centreline to edge and
parent material hardness limitations.
L
Min.
5.2
4.6
5.5
A
+0.12
7.13
5.63
7.63
Thread codes
M4
M3
M5
Anvil Dimensions
Do not remove any extra material or
chamfer the hole as this could result in
improper installation or reduced
performance.
HRB (ROCKWELL HARDNESS B SCALE)
Ensure that you are installing into a
panel that is ductile and at or below the
published maximum recommended
hardness for the fastener.
Ensure that attention is paid to the
minimum hole centreline to edge
dimension for each fastener. Installing
too close to an edge or bend could result
in improper installation or reduced
performance. Minimum centreline to
edge dimensions shown for each
fastener apply to one edge only. If this
distance is applied on multiple sides
there will be significant panel distortion
unless the panel edges are supported
during installation.
Installation
Material & Finish
Body
Electro Zinc Plated Carbon Steel (ZI)
300 Series Stainless Steel (A2)
Locking Element
White or Black Nylon (120°C max service temperature)
Parts are suitable for installation in ductile panels with a maximum recommended
hardness of 70 HRB.
Part Number Examples
Part number is made up as follows:
(Type)-(Thread)-(Material/Finish code)
For example:
NPL-M3-ZI (Nyloc Nut-M3-electro zinc plated carbon steel)
NPL-M5-A2 (Nyloc Nut-M5-stainless steel)
Info

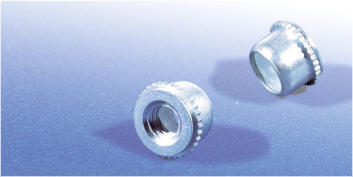

Self-Clinching Nyloc Nuts provide strong female threads in panels that are too thin to be conventionally tapped. A
nylon element provides a reusable non-metallic prevailing torque locking feature suitable for use in service
temperatures up to 120°C.
Utilising a special proven clinch feature in combination with a radially knurled collar, this fastener has excellent
torque-out and push-out characteristics whilst providing a flush finish on the underside of the panel.
Like all self clinching fasteners they are installed using a parallel squeezing action, so require access to both sides
of the panel.
Nyloc Clinch Nuts are available in various thread sizes, are manufactured from electro zinc plated carbon steel and
300 series stainless steel and are suitable for installation in ductile steel and aluminium panels with a
recommended maximum hardness of 70 HRB.

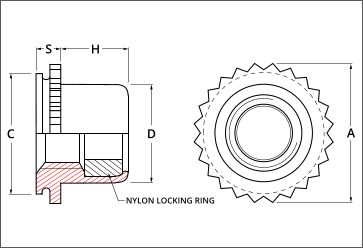

Dimensional Data
Self-Clinching fastener
Do’s & Don’ts
Self-Clinching fastener
problem solving guides
Downloadable
Data Sheet
Back
Type NPL
SELF-CLINCHING
NYLOC NUTS
