Hardened bush.
A minimum of 6 fully
engaged threads is
recommended on
both sides.
Test panel held
firmly in vice.
Applied torque
from dial measuring
torque wrench.
Minimum grade 5
bolt (grade 8 for
NHTS & NHFE
fasteners).
Hardened bushing with
sufficient wall thickness
to withstand applied
compression load.
Head
Dia.
+ 1.6mm
Test panel.
Compression rig base.
Push-out testing of Self-Clinching Thin Panel Non-Flush
Head Studs should be performed by the gradual
application of a load as shown above.
Bushing height should be sufficient to allow free
downward movement of the stud during testing. The
bushing bore must be centred on the head of the stud.
Torque-out testing of Self-Clinching Thin Panel
Non-Flush Head Studs should be performed by the
gradual application of torque as shown while the
test panel is securely held in a vice. The bolt must
be of a sufficient grade to resist thread stripping.
Torque must be gradually applied until failure is
observed and a maximum applied torque reading
is recorded. Failure mode is the stud turning in the
panel, cam-out, or dependent on stud type/size,
thread failure.
M3
0.74
M4
1.7
M5
3.5
5.5
5.6
11.4
12.3
12.0
12.2
15.9
16.7
15.4
14.5
24.8
25.2
200
200
320
320
240
240
530
530
270
270
680
680
0.6
0.6
1.1
1.1
0.65
0.65
2.8
2.6
1.3
1.3
3.1
3.1
NTFH (ZI)
NTFH (A2)
NTFH (ZI)
NTFH (A2)
NTFH (ZI)
NTFH (A2)
NTFH (ZI)
NTFH (A2)
NTFH (ZI)
NTFH (A2)
NTFH (ZI)
NTFH (A2)
Aluminium
Steel
Aluminium
Steel
Aluminium
Steel
All performance figures are averages obtained over a range of installations and should be used as an indicator
only. Panel material, hole preparation, installation tooling and method can affect part performance. We always
recommend that you carry out your own tests in the actual application. Please call our sales team and we will be
happy to provide you with samples as well as offering technical assistance.
6.25
4.95
6.85
4.03
3.03
5.03
M4
M3
M5
4.6
3.6
5.6
Countersunk hole style
anvil for 0.75mm or less
panel thickness.
Straight thru hole style
anvil for 0.76mm
minimum panel thickness.
Pocket punch detail. Pocket provides
clearance for head protrusion,
minimising risk of over installation.
First punch or drill the correct size hole. Do not deburr or chamfer the hole prior to installation as this will
remove material required during the clinching process. It is preferable to install the fastener from the punch
side of the panel.
Place the fastener in the prepared hole in the panel and then locate the fastener in the anvil, ensuring that you
are using the appropriate anvil type for the panel thickness like in the diagram above.
With the panel held level, apply a parallel squeezing force until the face of the punch meets the panel surface.
This fastener is not designed to install flush, correct installation should leave the head protruding by a
maximum of 0.64mm. Do not over squeeze the fastener into the panel as this will result in panel deformation.
When installing Self-Clinching fasteners, please pay attention to the minimum hole centreline to edge and
parent material hardness limitations.
Do not remove any extra material or
chamfer the hole as this could result in
improper installation or reduced
performance.
HRB (ROCKWELL HARDNESS B SCALE)
Ensure that you are installing into a
panel that is ductile and at or below the
published maximum recommended
hardness for the fastener.
Ensure that attention is paid to the
minimum hole centreline to edge
dimension for each fastener. Installing
too close to an edge or bend could result
in improper installation or reduced
performance. Minimum centreline to
edge dimensions shown for each
fastener apply to one edge only. If this
distance is applied on multiple sides
there will be significant panel distortion
unless the panel edges are supported
during installation.
Electro Zinc Plated Carbon Steel (ZI) parts are suitable for installation in ductile panels
with a maximum recommended hardness of 80 HRB.
300 Series Stainless Steel (A2) parts are suitable for installation in ductile panels with a
maximum recommended hardness of 70 HRB.
Part number is made up as follows:
(Type)-(Thread)-(Length)-(Material/Finish code)
For example:
NTFH-M3-10-ZI (Thin Panel Stud-M3-10mm long-electro zinc plated carbon steel)
NTFH-M4-12-A2 (Thin Panel Stud-M4-12mm long-stainless steel)
Use part designation NTFHD to specify a dog-point thread lead-in (special order).

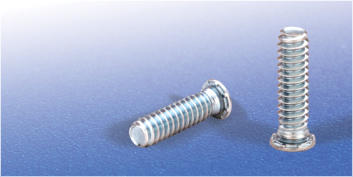

Self-Clinching Thin Panel Studs provide strong captivated male threads in panels as thin as 0.51mm. This fastener
does not install fully flush on the underside of the panel.

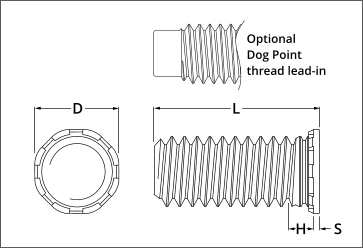

Utilising a special proven castellated clinch feature, this fastener has good torque-out, pull-through and push-out
characteristics whilst providing minimal protrusion on the underside of the panel (refer to S dimension).
Like all self clinching fasteners they are installed using a parallel squeezing action, so require access to both sides of
the panel.
Reduced Head Studs are available in a range of thread sizes and lengths, manufactured from electro zinc plated
steel, 300 series stainless steel and are suitable for installation in ductile steel and aluminium panels with a
recommended maximum hardness of 80 HRB for steel parts and 70 HRB for 300 series stainless steel parts.
Reduced Head Studs can also be supplied with a dog-point thread lead-in to aid component assembly.
A
Length of stud
+3.2mm min.
A
Length of stud
+3.2mm min.
90°
B
C
0.51mm
0.53mm
